Description

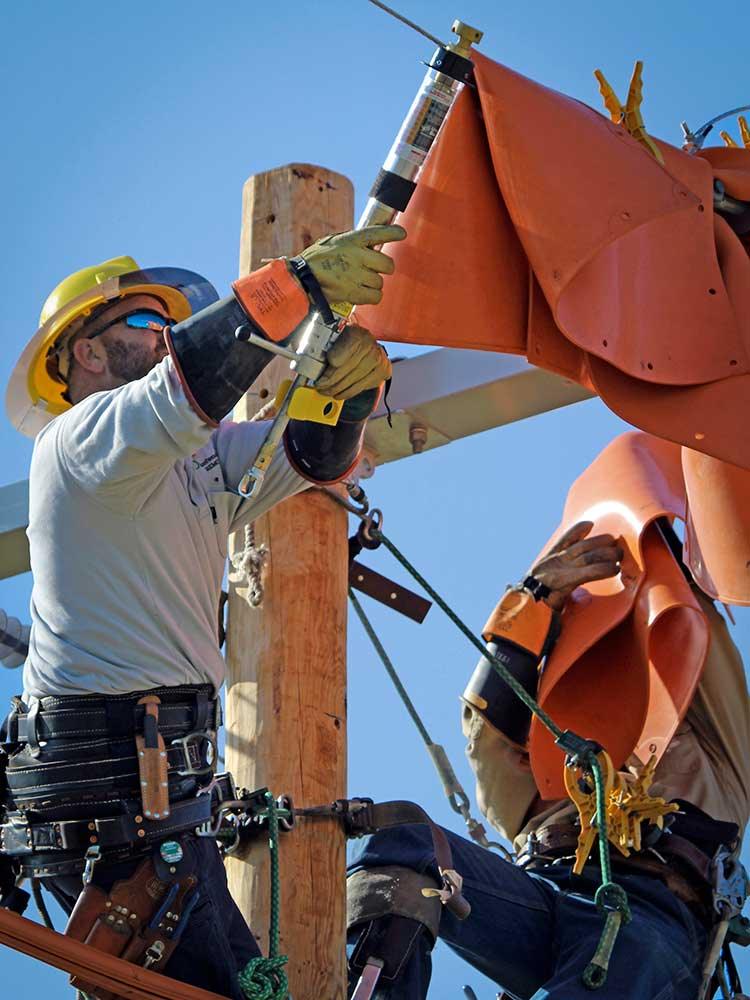

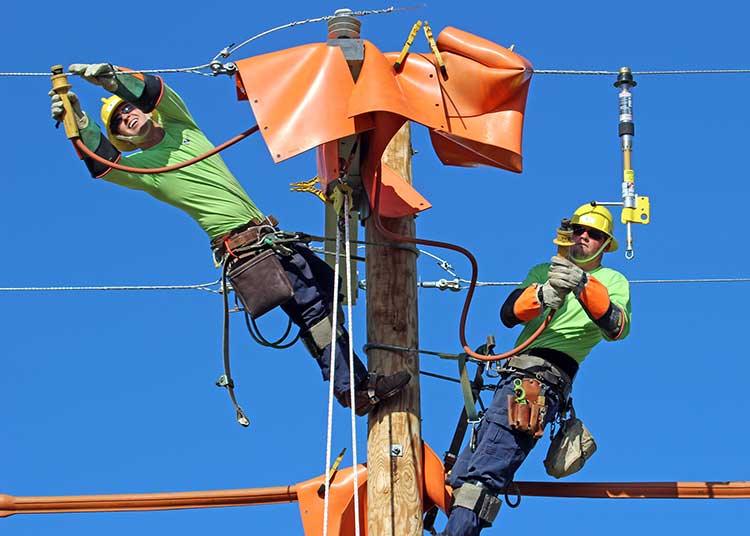

The Utility Solutions USBS-27-1-PS-S BREAK-SAFE® is a 27 kV Load Break and Pick-up Jumper Clamp designed to function as a portable switch for overhead distribution lines. This tool allows trained lineworkers to safely and efficiently perform load break and load pickup operations, minimizing power service interruptions during repairs and maintenance. It
The BREAK-SAFE® has three operating functions:

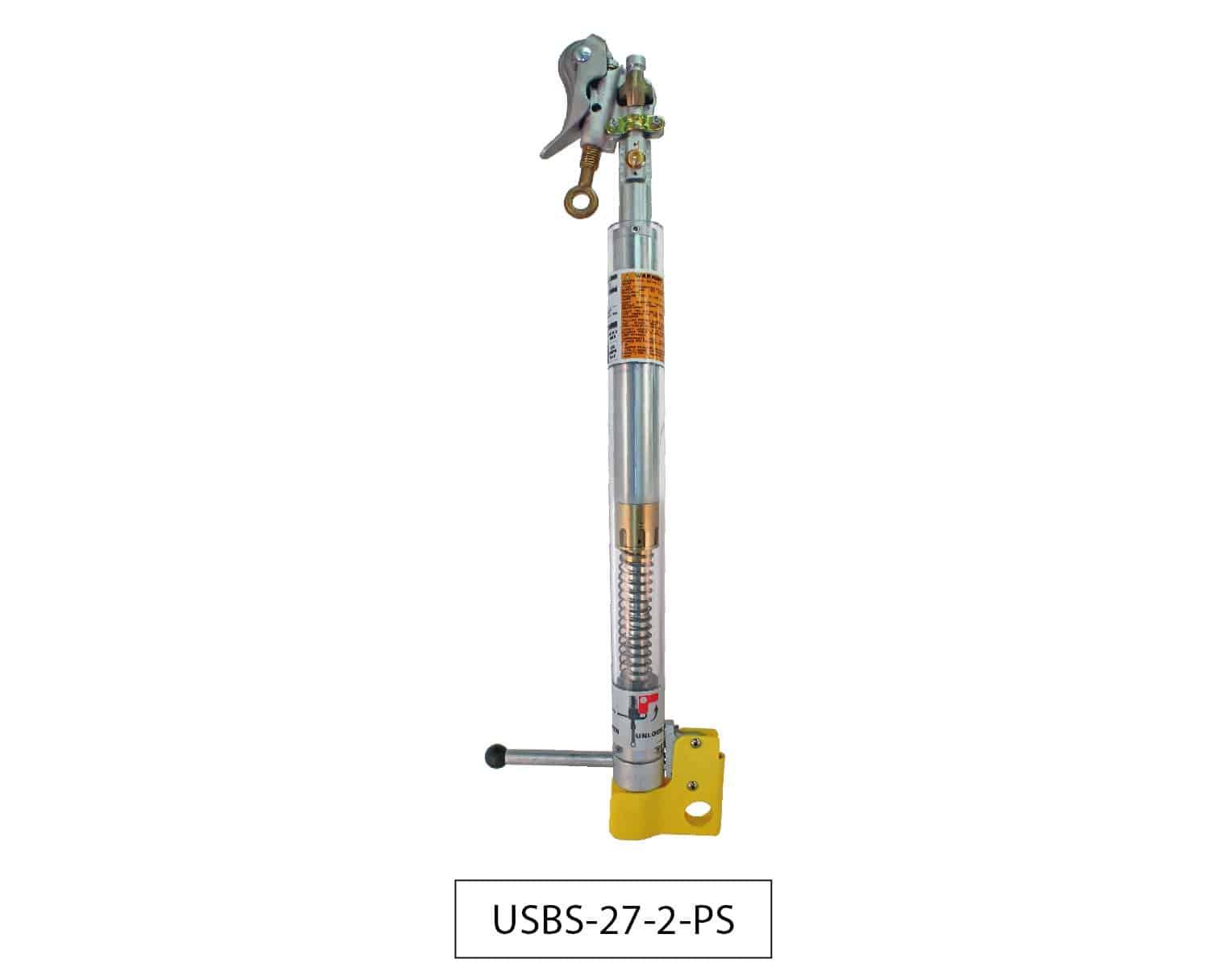

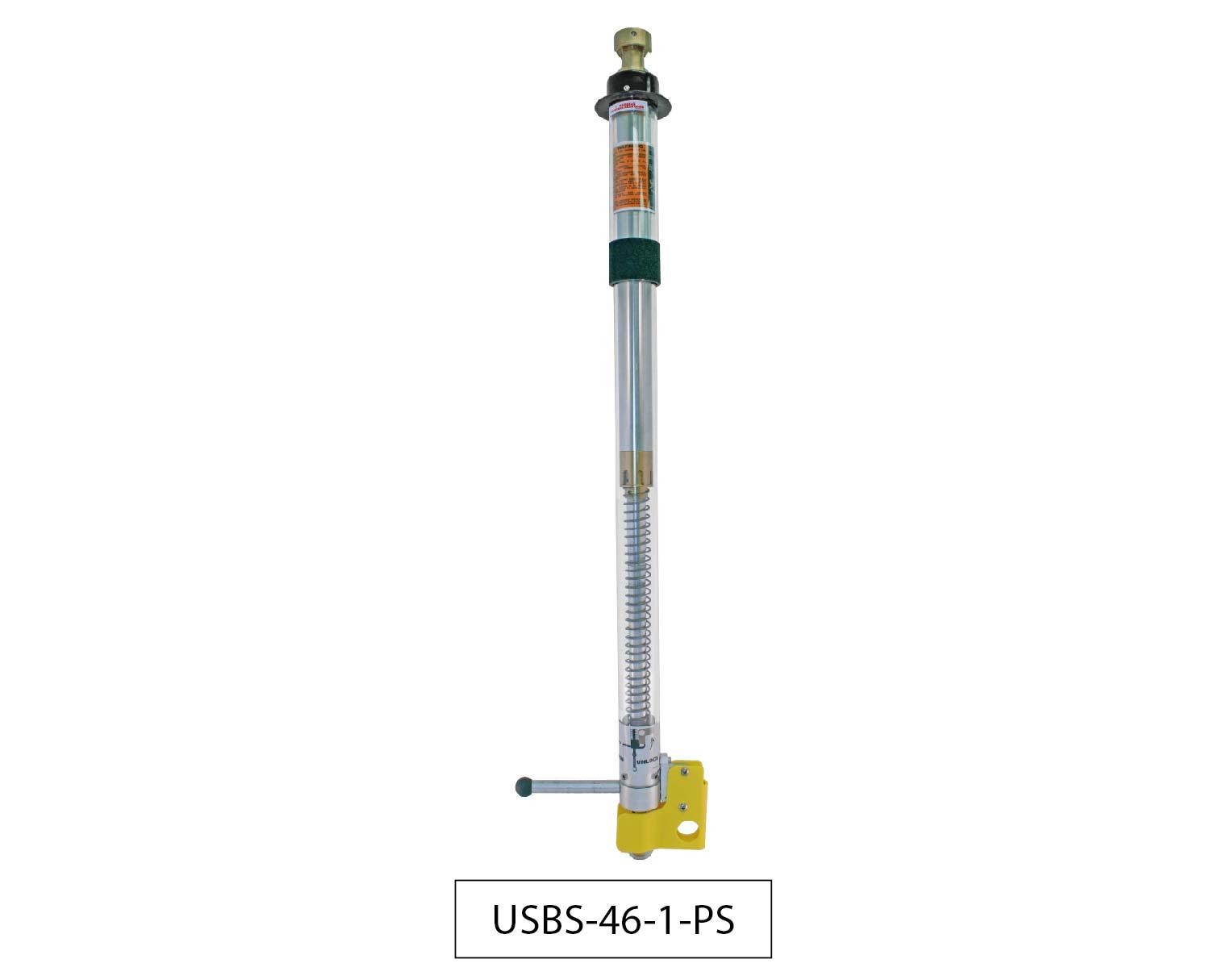

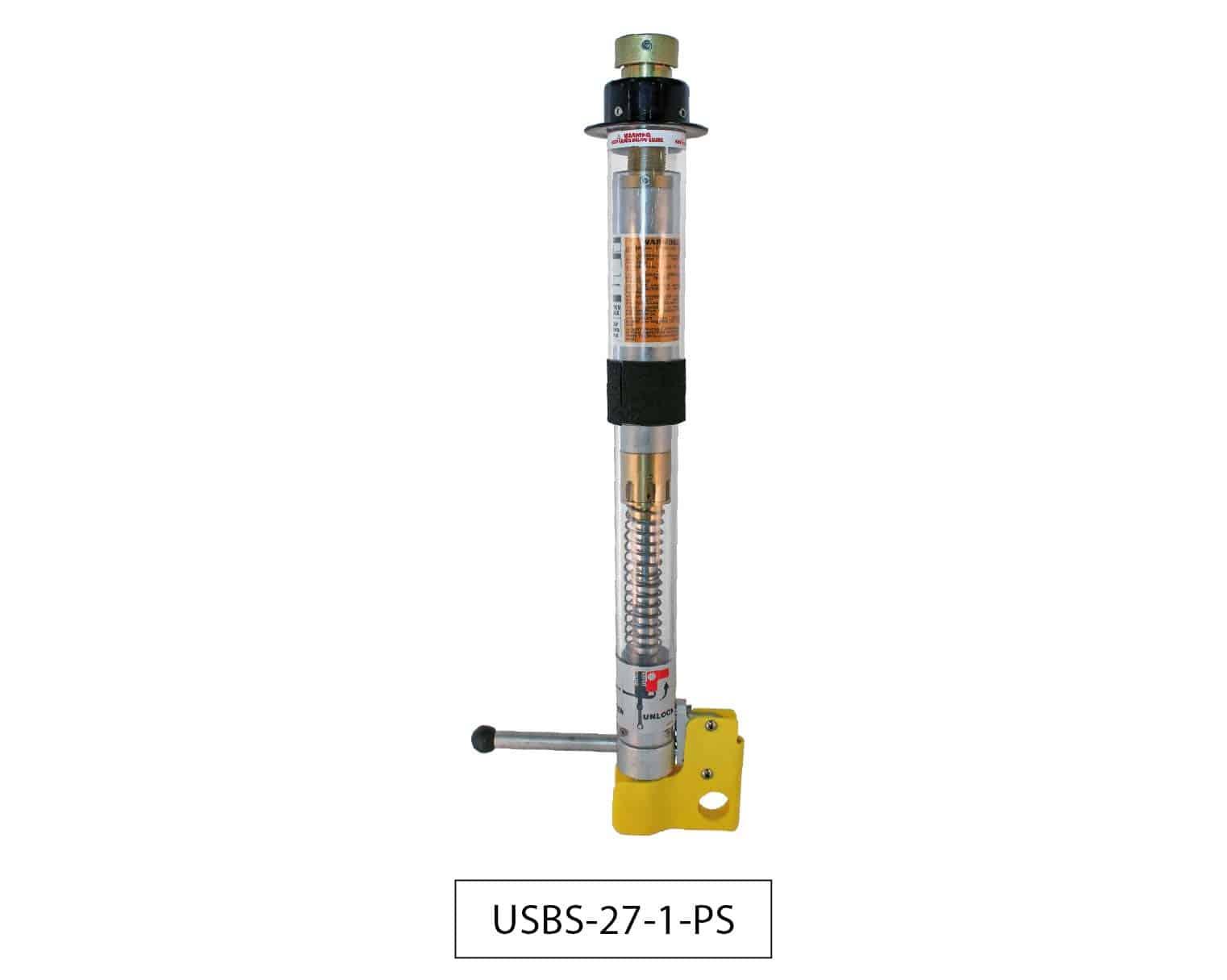

The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill Head:
MINIMUM SAFE DISTANCE
In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions.
The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.
Conductor Sizes (ALL): #6 copper min. up to 954 ACSR (1.1" dia.) MAX.
Features:
- Key Features and Benefits:
- Operates at a maximum of 27 kV and handles up to 300 amps for load break, load pickup, and continuous current duty, supporting versatility in high-voltage overhead distribution systems.
- Patented design functions as a portable switch, adding flexibility and functionality to temporary mechanical jumpers, thus reducing downtime and enhancing field crew efficiency.
- Enables load break and pickup operations using an insulated fiberglass hot stick, ensuring operators maintain a safe distance from energized lines and improving overall safety.
- Features a yellow safety lock that is also hot stick operable, preventing unintended activation and providing clear visual indication of the tool's status.
- Lightweight and compact construction (7.9 lb; 31-inch length; 2.5-inch diameter) makes the tool easy to handle and transport in the field.
- Positive lock mechanism ensures the tool remains in the desired state (circuit open or closed) until the operator is ready for the next action, promoting secure operation.
- Compatible with conductor sizes ranging from #6 copper up to 954 ACSR (1.1-inch diameter), accommodating a broad range of distribution line configurations.
Specifications:
- Maximum operational voltage: 27 kV
- Maximum load break rating: 300 amps
- Maximum load pickup rating: 300 amps
- Maximum continuous current rating: 300 amps
- Compatible conductor sizes: #6 copper minimum up to 954 ACSR (1.1” diameter) maximum
- Tool diameter: 2.5 inches
- Product weight: 7.9 lbs (approx.)
- Product dimensions: 31 inches in length
- Head type: Floating head (for gloved work)
- Safety features: Yellow safety lock, positive lock mechanism
- Installation: Gloved or hot stick (fiberglass insulated stick) operation
- What’s Included in the Package:
- USBS-27-1-PS-S BREAK-SAFE® 27 kV Load Break & Pick-up Jumper Clamp with Floating Head

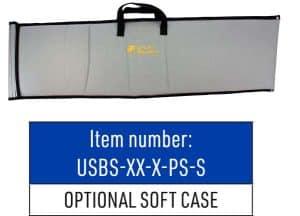

- Soft carrying case for transport and storage
- Parking stand to support use with existing jumper cables
Includes:
- Technical Specifications:
- Maximum operational voltage: 27 kV
- Maximum load break rating: 300 amps
- Maximum load pickup rating: 300 amps
- Maximum continuous current rating: 300 amps
- Compatible conductor sizes: #6 copper minimum up to 954 ACSR (1.1” diameter) maximum
- Tool diameter: 2.5 inches
- Product weight: 7.9 lbs (approx.)
- Product dimensions: 31 inches in length
- Head type: Floating head (for gloved work)
- Safety features: Yellow safety lock, positive lock mechanism
- Installation: Gloved or hot stick (fiberglass insulated stick) operation
- What’s Included in the Package:
- USBS-27-1-PS-S BREAK-SAFE® 27 kV Load Break & Pick-up Jumper Clamp with Floating Head
- Soft carrying case for transport and storage
- Parking stand to support use with existing jumper cables
