Description
The Utility Solutions BREAK-SAFE USBS-27-2-PS-S is a portable load break and pick-up jumper clamp designed for use on overhead electrical distribution lines. This device acts as a temporary, field-installable switch, providing linemen with a safe and reliable solution for load management during maintenance and repair operations.
The BREAK-SAFE® has three operating functions:

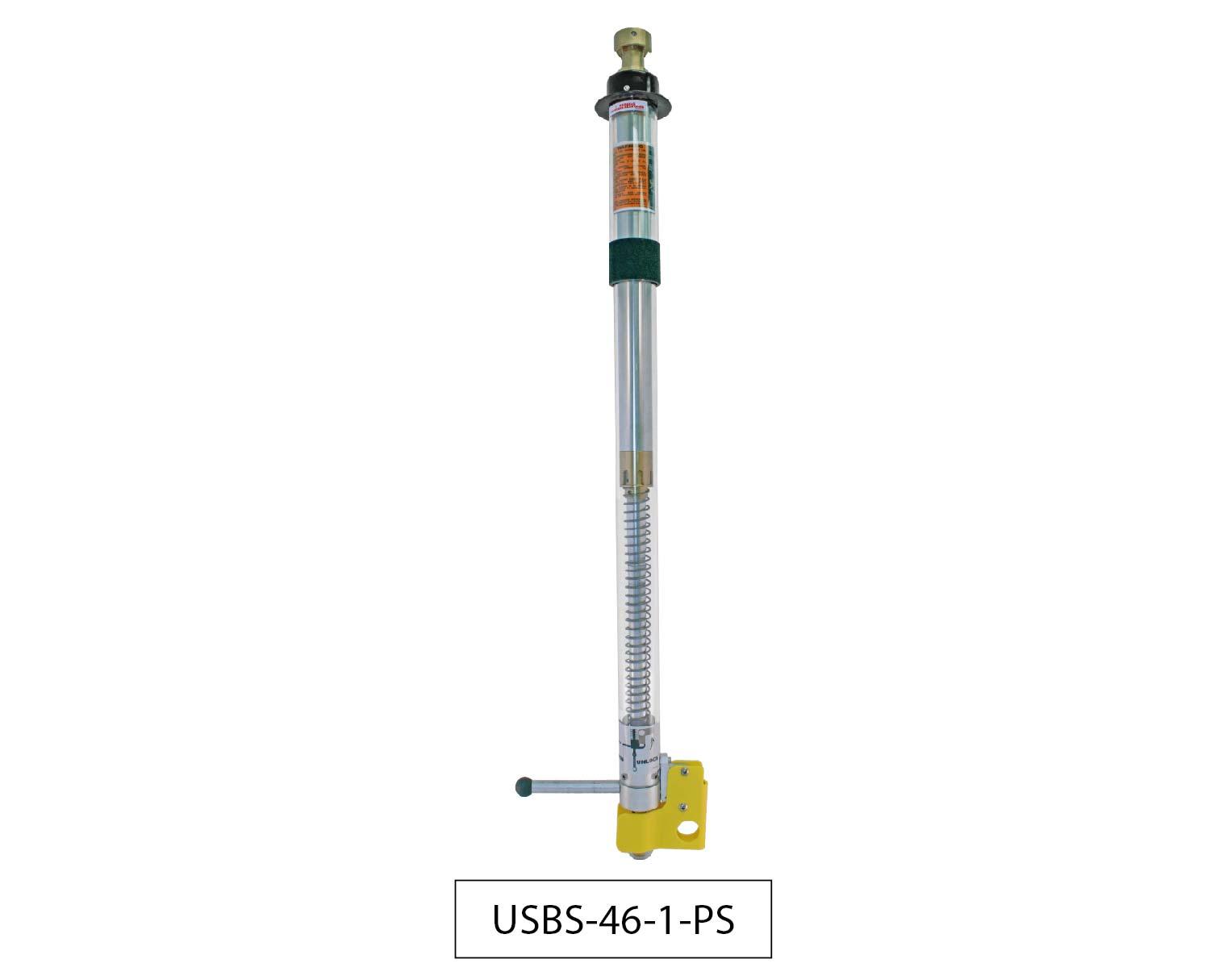

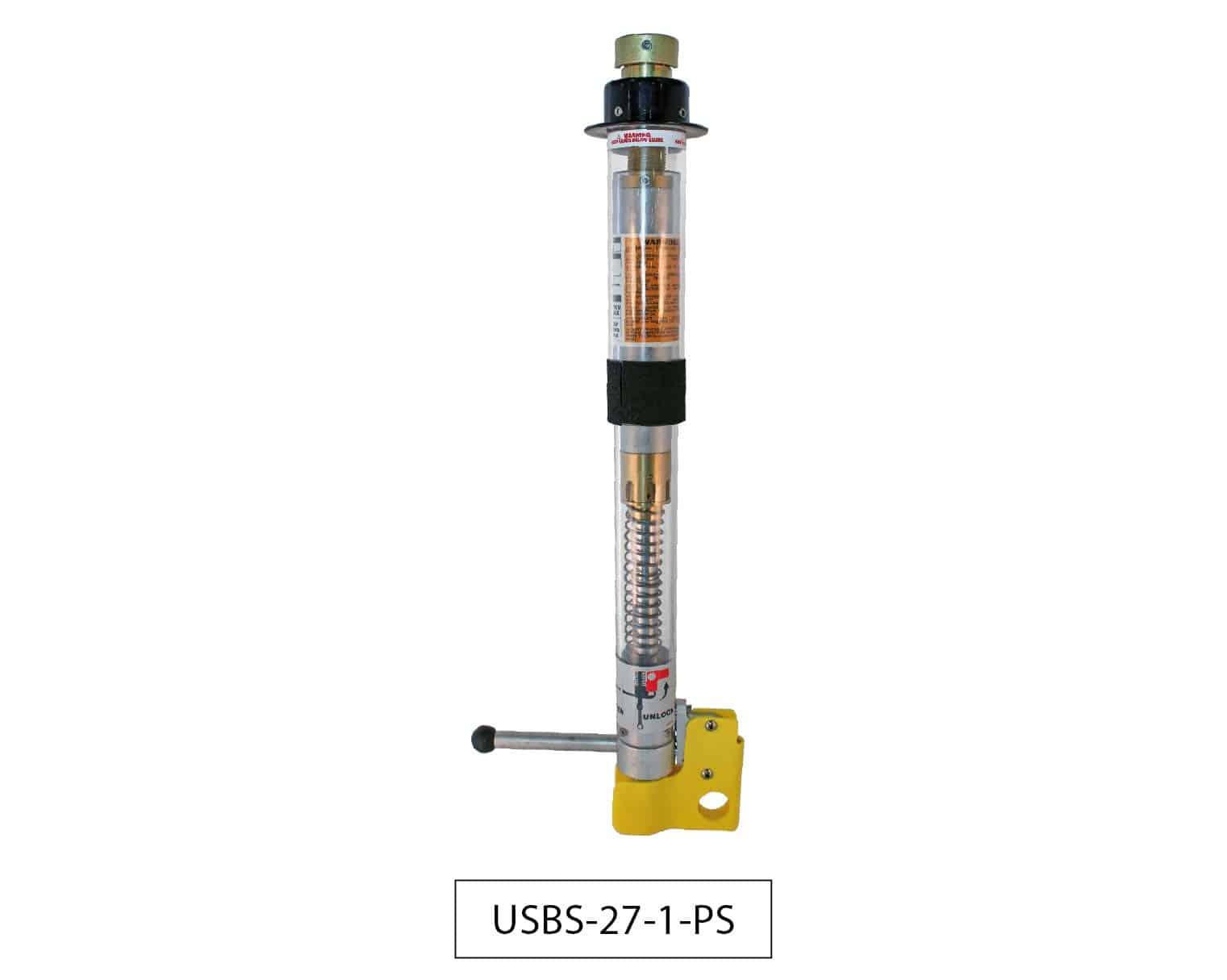

The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill Head:
MINIMUM SAFE DISTANCE

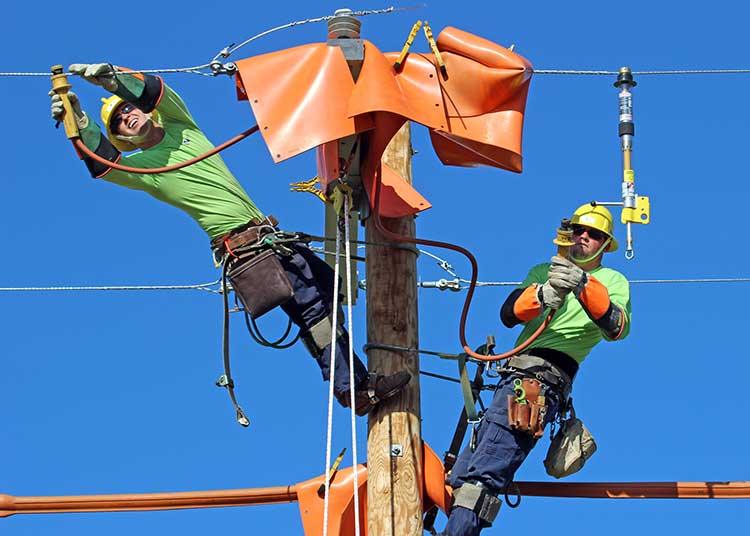

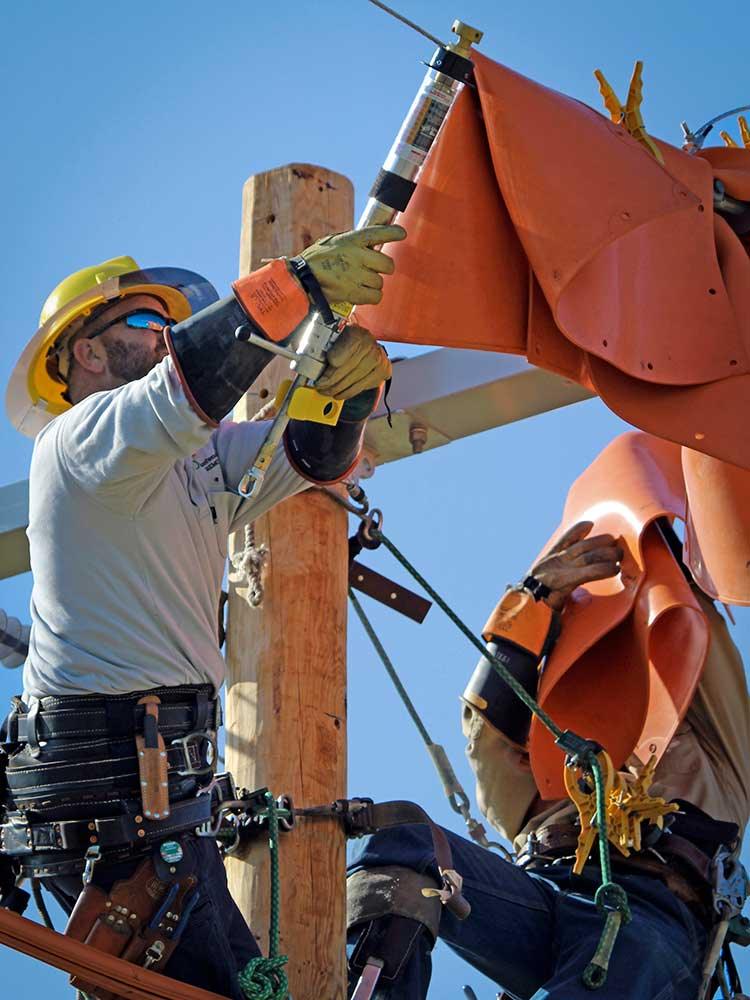

In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions.
The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.
Conductor Sizes (ALL): #6 copper min. up to 954 ACSR (1.1" dia.) MAX.
Features:
- Portable Switch Functionality: Operates as a temporary switch, enabling load break and pick-up operations directly on distribution lines.
- Versatile Application: Compatible with mechanical jumper systems for increased operational flexibility.
- Enhanced Safety: All operations are performed remotely using an insulated fiberglass hot stick, maintaining personnel safety by keeping users at a safe distance.
- Positive Safety Lock: Features a yellow safety lock, operable by hot stick, to prevent unintended opening or closing during use.

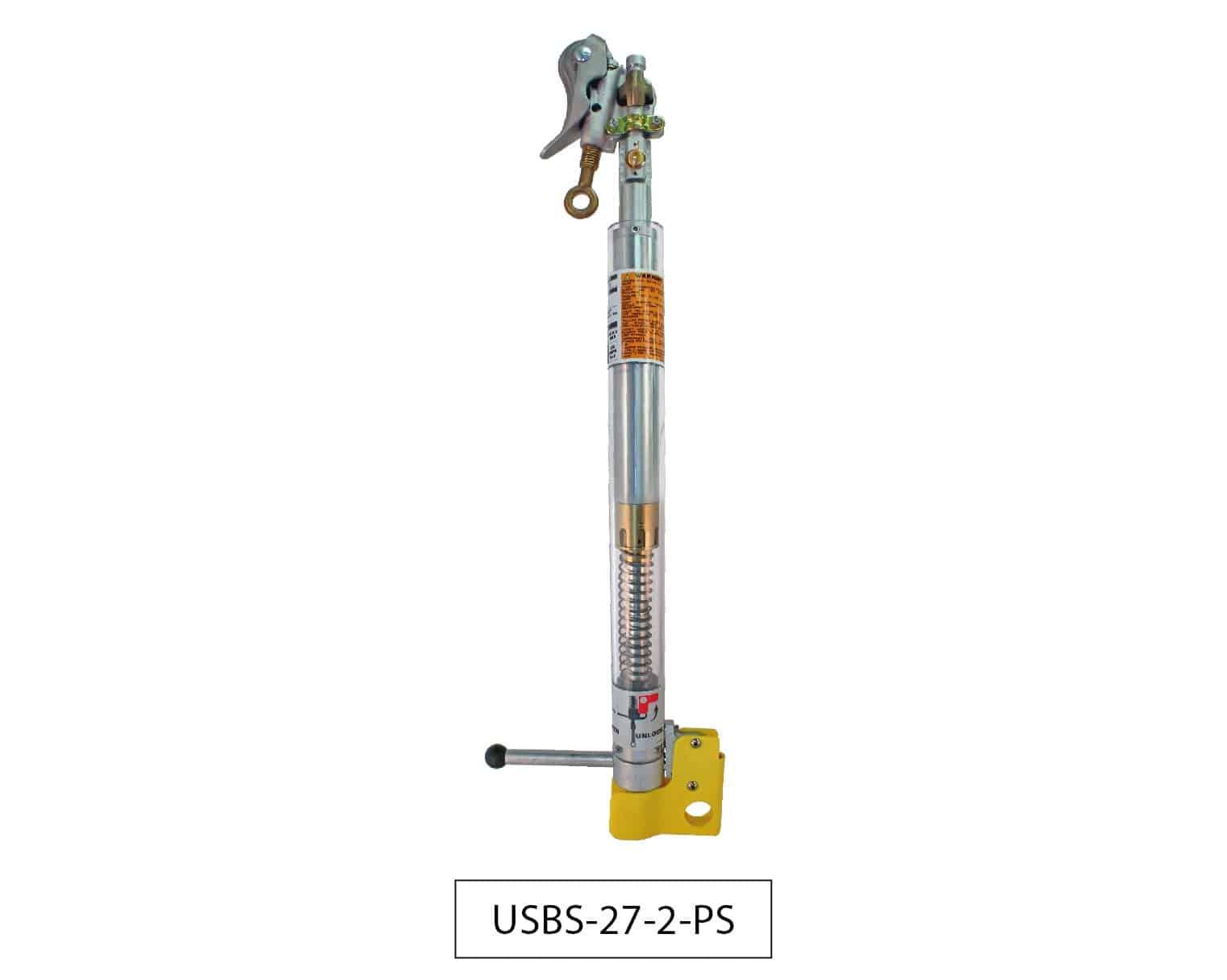

- Duckbill Head Design: The "duckbill" model allows for secure installation and removal with a shotgun stick—ideal where gloved contact is restricted.
- Suitable for a Wide Range of Conductors: Capable of clamping onto conductors from #6 copper up to 954 ACSR (1.1" diameter).
- Durable Construction: Built to withstand tough field conditions, lightweight and compact for easy transport and installation.
- Visual Status Indicator:
Specifications:
- Model: USBS-27-2-PS-S (BREAK-SAFE 27 kV with Duckbill Head and Soft Case)
- Operational Voltage: 27 kV maximum
- Load Break Rating: 300 amps maximum
- Load Pickup/Continuous Current: 300 amps maximum
- Weight: 7 lb (3.18 kg)
- Closed Length: 32 inches (81 cm)
- Open Length: 37.5 inches (95 cm)
- Maximum Conductor Size: #6 copper minimum up to 954 ACSR (1.1" diameter) maximum
- Clamp Diameter: 2.5 inches (6.35 cm)
- Head Type: Duckbill
- Operation: Requires insulated fiberglass hot stick or shotgun stick for all functions
- Compliance: Patented technology, Made in USA
- What’s Included in the Package:
- USBS-27-2-PS-S BREAK-SAFE Load Break & Pick-Up Tool with Duckbill Head

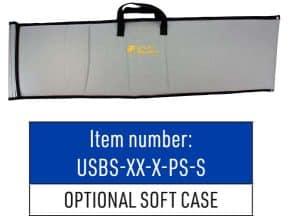

- Soft carrying case for secure storage and transportation
- Integrated positive lock and safety lock mechanism
- Visual status indicator (yellow band on pull strap)
- Documentation: User manual and safety instructions (where supplied by distributor or manufacturer)
Includes:
- Technical Specifications:
- Model: USBS-27-2-PS-S (BREAK-SAFE 27 kV with Duckbill Head and Soft Case)
- Operational Voltage: 27 kV maximum
- Load Break Rating: 300 amps maximum
- Load Pickup/Continuous Current: 300 amps maximum
- Weight: 7 lb (3.18 kg)
- Closed Length: 32 inches (81 cm)
- Open Length: 37.5 inches (95 cm)
- Maximum Conductor Size: #6 copper minimum up to 954 ACSR (1.1" diameter) maximum
- Clamp Diameter: 2.5 inches (6.35 cm)
- Head Type: Duckbill
- Operation: Requires insulated fiberglass hot stick or shotgun stick for all functions
- Compliance: Patented technology, Made in USA
- What’s Included in the Package:
- USBS-27-2-PS-S BREAK-SAFE Load Break & Pick-Up Tool with Duckbill Head
- Soft carrying case for secure storage and transportation
- Integrated positive lock and safety lock mechanism
- Visual status indicator (yellow band on pull strap)
- Documentation: User manual and safety instructions (where supplied by distributor or manufacturer)
