Description
BS 15 2 PS S refers to the Utility Solutions BREAK-SAFE® 15kV Loadbreak & Pickup Jumper Clamp with Duckbill Head, a tool used for safe switching operations on overhead power distribution lines. Introduction: The BS 15 2 PS S is a heavy-duty, portable loadbreak and pickup jumper clamp designed for use on 15kV overhead distribution lines. Its primary function is to enable utility workers to make or break energized connections safely, serving as a portable switch for load transfer and isolation procedures on live lines.
The BREAK-SAFE® has three operating functions:
The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill Head:
MINIMUM SAFE DISTANCE

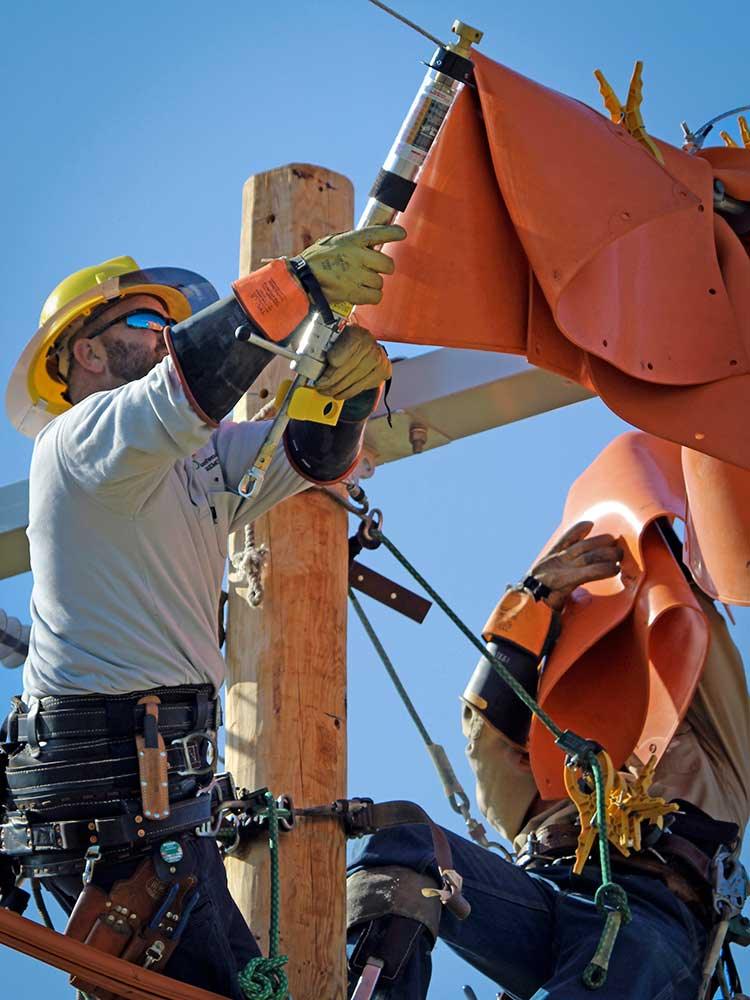

In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions.
The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.
Conductor Sizes (ALL): #6 copper min. up to 954 ACSR (1.1" dia.) MAX.
Diameter (ALL): 2.5"
Features:
- Performs safe load break, load pickup, and continuous current duty operations on live distribution lines, minimizing service interruptions.
- Features a Duckbill Head, which provides precise alignment and secure gripping of conductors for reliable switching.
- Rated for 15kV and 300 amps, suitable for a wide range of overhead distribution applications.
- Operates with an insulated fiberglass hot stick, maintaining a minimum safe distance for operator safety.
Specifications:
- Voltage Rating: 15 kV
- Current Rating: 300 amps
- Head Type: Duckbill
- Weight: 6 lb 7 oz
- Length (Retracted): 28 inches
- Length (Extended): 32 inches
- Diameter: 2.5 inches
- Conductor Size Compatibility: #6 copper minimum to 954 ACSR (1.1" diameter) maximum
Includes:
- Accommodates conductor sizes from #6 copper up to 954 ACSR (1.1" diameter), offering broad compatibility.
- Rugged all-weather construction ensures durability and long service life.

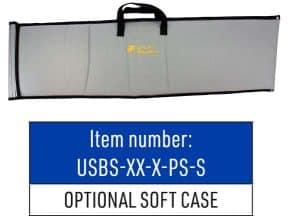

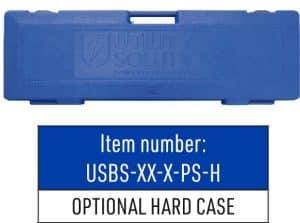

- Available with optional soft or hard carrying cases for convenient transportation and storage.
- Technical Specifications:
- Voltage Rating: 15 kV
- Current Rating: 300 amps
- Head Type: Duckbill
- Weight: 6 lb 7 oz
- Length (Retracted): 28 inches
- Length (Extended): 32 inches
- Diameter: 2.5 inches
- Conductor Size Compatibility: #6 copper minimum to 954 ACSR (1.1" diameter) maximum
- What's Included in the Package:
- One BREAK-SAFE® 15kV Loadbreak & Pickup Jumper Clamp with Duckbill Head (BS 15 2 PS S)
- Yellow Safety Lock pre-installed
- Instruction manual
- Optional: soft or hard case if specified in order
