Description

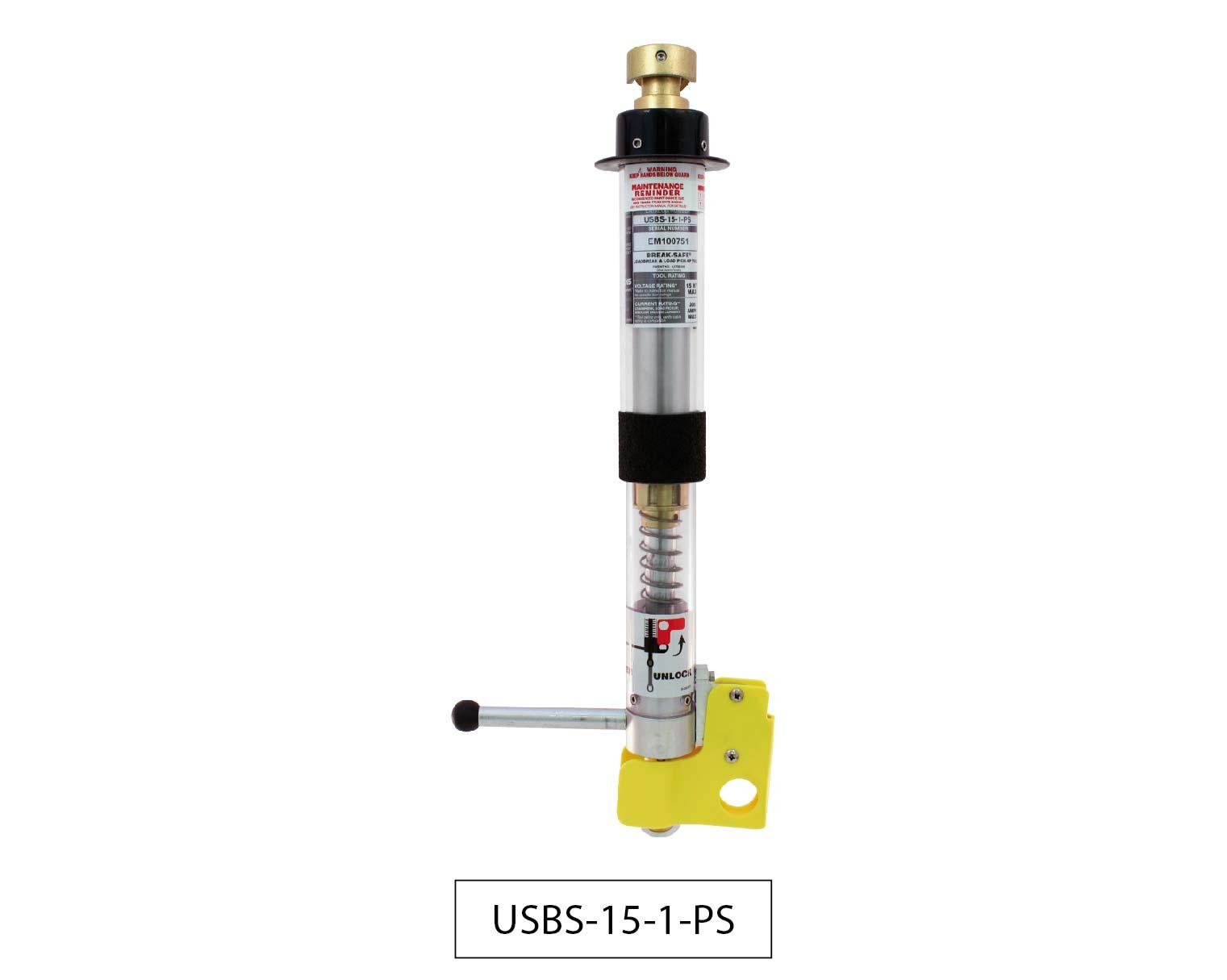

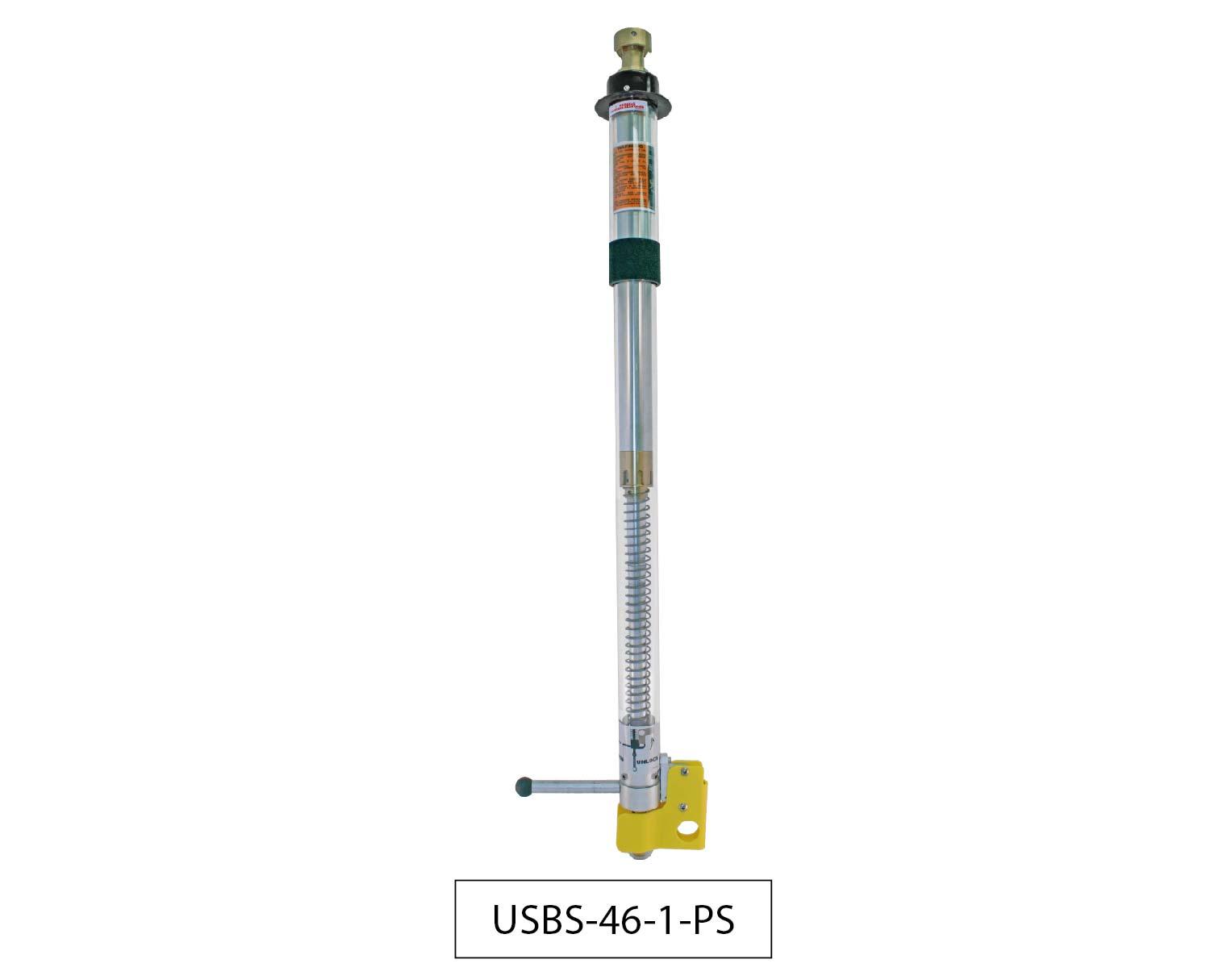

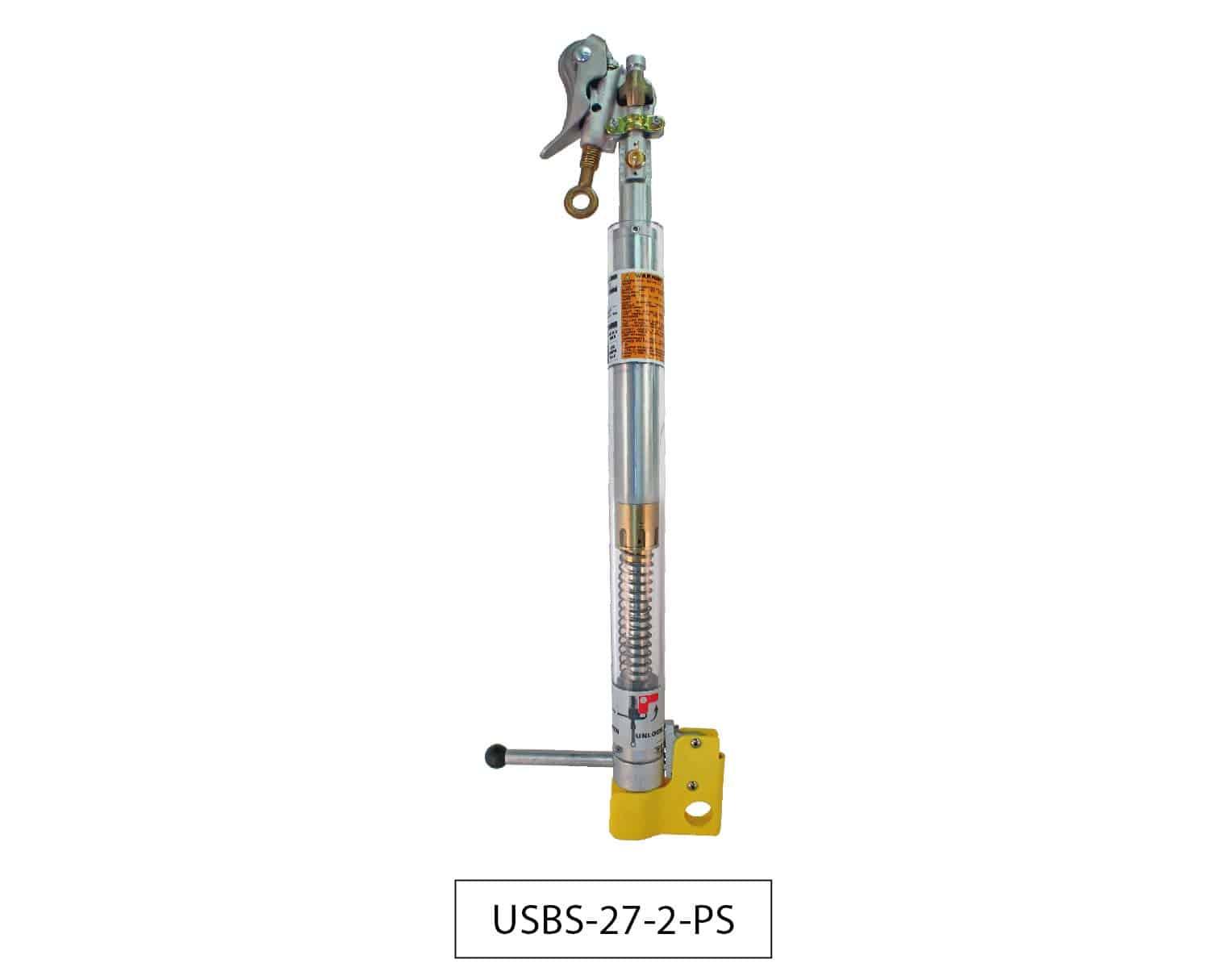

Load Break & Pick-up Tool The patented BREAK-SAFE® is designed to add a functional and portable switch to a mechanical jumper. The BREAK-SAFE® has three operating functions: Load Break Continuous Current Duty Load Pick-Up In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions. The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation. The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill: 15 kV / 300 amp 27 kV / 300 amp 38 kV / 300 amp* 46 kV / 200 amp* *38 kV/ 300 amp and 46 kV / 200 amp models require product verification to order. Please complete the following form if you are ordering either of these models: Product Verification Form How To Order ITEM NUMBER DESCRIPTION SYSTEM VOLTAGE RATING* WE

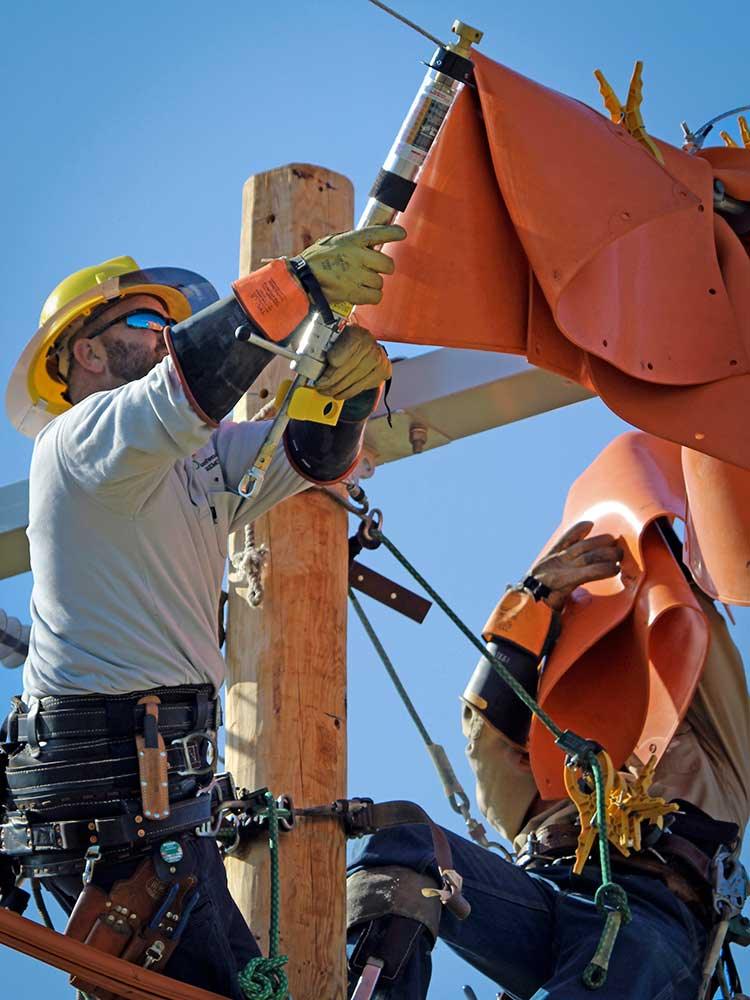

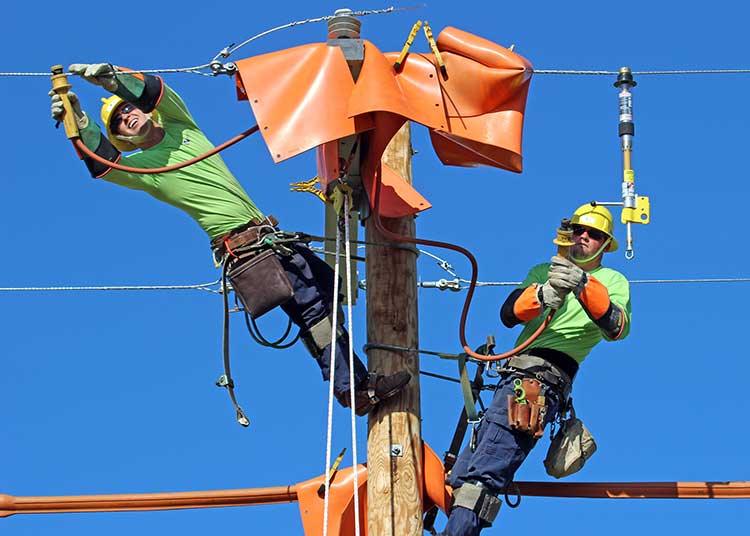

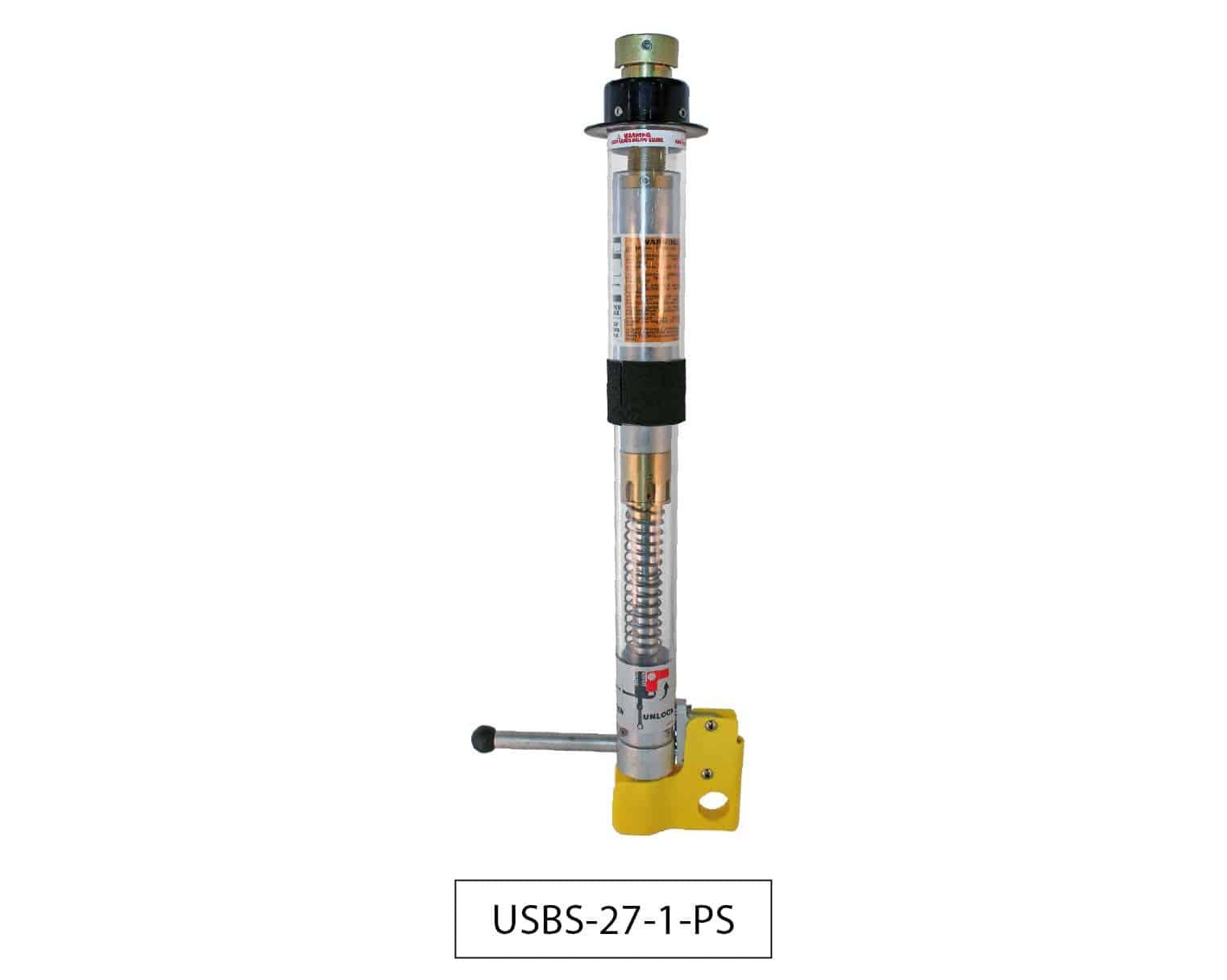

The BREAK-SAFE® is a jumper clamp that functions like a portable switch. It is designed to operate on overhead distribution lines in conjunction with a mechanical jumper. In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick(sold separately) for load break and load pick-up functions. The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.
The BREAK-SAFE® has three operating functions:
Specifications:
Features:
- LOAD BREAK
- LOAD PICKUP
- CONTINUOUS CURRENT DUTY

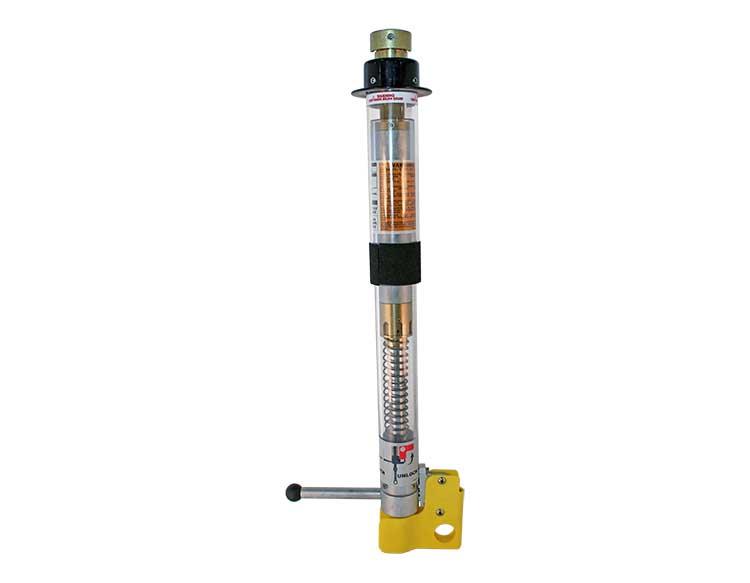

- MODEL: USBS-15-2-PS-H
- OPERATIONAL VOLTAGE: 15 kV
- RATING: 300 AMPS
- WEIGHT: 6 lb 7 oz
- CLOSED LENGTH: 28"
- OPEN LENGTH: 32"
- HEAD: DUCKBILL

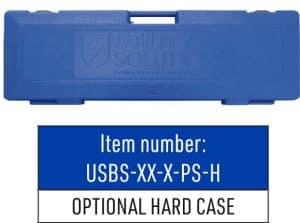

- CASE: HARD
- Made in the USA
