Description

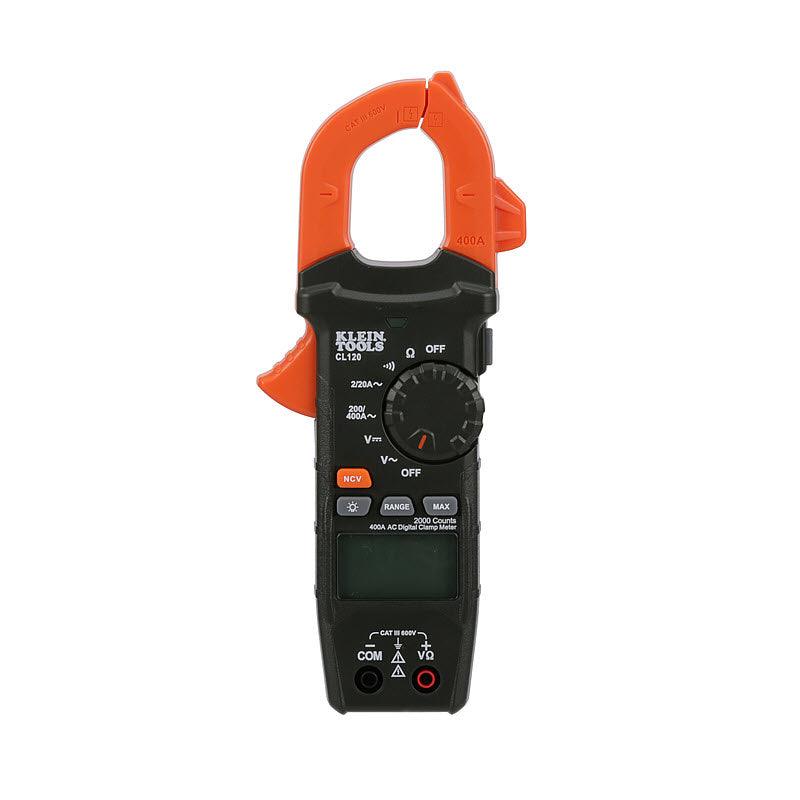

The Klein Tools CL120 is a robust, auto-ranging digital clamp meter engineered for electricians and field technicians. It is designed to efficiently measure AC current with its clamp, as well as AC/DC voltage, resistance, and continuity using test leads. The CL120 also
Features:
- Key Features and Benefits:
- Measures AC current (up to 400A) and non-contact voltage via the clamp, plus AC/DC voltage, resistance (up to 20 MΩ), and continuity using test leads.
- Integrated non-contact voltage tester provides a quick way to detect live circuits without direct contact.
- Auto-ranging capability eliminates the need for manual range selection, simplifying operation and reducing errors.
- Backlit LCD ensures clear, easy readings even in low-light environments.
- Durable construction with 2-meter (6.6 ft) drop protection for reliable field performance.
- Auto power-off after 10 minutes to extend battery life.
- Safety rated to CAT III 600V and double insulated (Class 2), meeting stringent standards for electrical safety.
- Low battery indicator and easily accessible battery compartment for minimal downtime.
Specifications:
- AC Current Range: 2.0A to 400A (via clamp), resolution down to 1mA.
- AC/DC Voltage Range: up to 600V, with input impedance of 10MΩ.
- Resistance: up to 20 MΩ.
- Jaw Size: 1.6 inches (4.1 cm), suitable for standard cables and conductors.
- Display: 2000 count backlit LCD.
- Auto-ranging, hold, data hold, and max value functions.
- Drop Protection: 6.6 ft (2 meters).
- Dimensions: 8.46 x 3.54 x 1.50 inches (215 x 90 x 38 mm).
- Weight: approximately 11 oz (313 g) with batteries.
- Operating Temperature: 32°F to 122°F (0°C to 50°C).
- Safety: CAT III 600V, Class 2, double insulation; conforms to IEC and UL standards.
- Power: Three AAA batteries.
- Auto Power-Off: After approximately 10 minutes of inactivity.

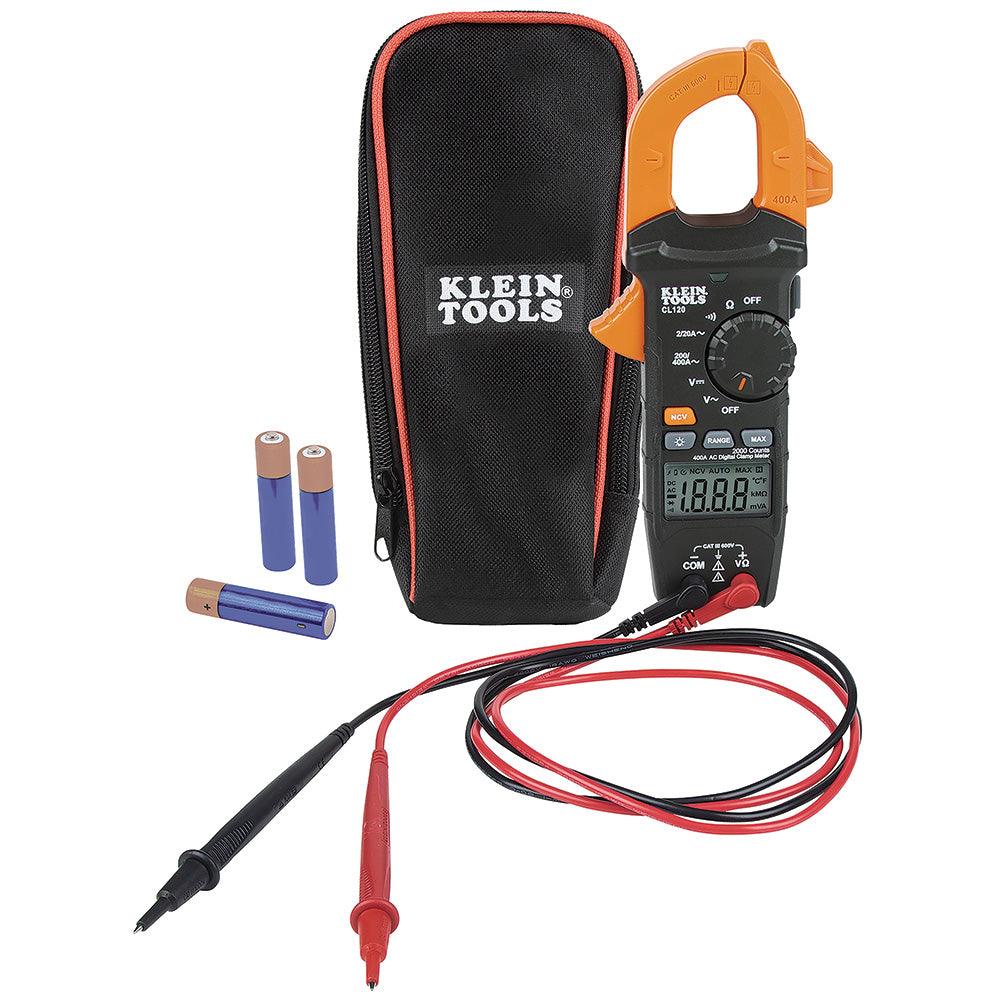

Includes:
- CL120 digital clamp meter unit
- Carrying case for storage and transport
- Test leads with CAT III/CAT IV safety caps
- Instruction manual
- Three AAA batteries (pre-installed or included separately)
