Description

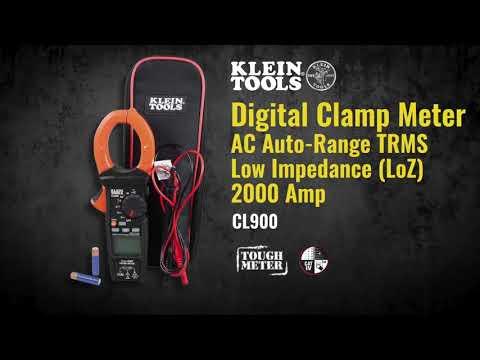

The CL900 is an auto-ranging, true root mean square (TRMS) digital clamp meter designed for professional electrical testing in demanding environments. Manufactured by Klein Tools, it provides precise measurement of AC/DC current via its clamp and also allows AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and diode testing through its test leads. With advanced
Features:
- Measures up to 2000A AC/DC current and 1000V AC/DC voltage for broad electrical troubleshooting applications.
- True RMS technology enables highly accurate readings, especially for irregular or non-sinusoidal waveforms.
- Low Impedance (LoZ) mode identifies and eliminates ghost or stray voltages for more reliable measurements.
- Integrated non-contact voltage detection for safer, faster voltage checks without direct metallic contact.
- Inrush current capture mode allows accurate measurement of startup currents from motors and other inductive loads.
- Rugged design, built to withstand drops up to 6.6 feet (2 meters) and tough jobsite conditions.
- Backlit 6000-count LCD display ensures visibility in low-light work environments.
- Additional functions include audible continuity, diode test, frequency, duty cycle, capacitance measurement, min/max reading storage, data hold, and auto power-off for preserving battery life.
Specifications:
- AC/DC Current Range: up to 2000A via clamp
- AC/DC Voltage Range: up to 1000V via test leads
- Resistance: up to 60MΩ
- Capacitance: up to 6000µF
- Frequency Range: up to 500kHz
- Jaw Size: 2 inches (5 cm)
- Display: 3-5/6 digit, 6000 count LCD with backlight
- Drop Protection: 6.6 feet (2 meters)
- Safety Rating: CAT IV 600V, CAT III 1000V, Class 2, double insulation
- Ingress Protection: IP40
- Power Source: 2 x AAA batteries (included)
- Dimensions: 10.4" x 3.9" x 1.7" (265 x 99 x 43 mm)
- Weight: 17.6 oz (499 g)
- Auto Power-Off: after 30 minutes of inactivity
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: 14°F to 140°F (-10°C to 60°C)
- Relative Humidity: <80% non-condensing
- CL900 Digital Clamp Meter

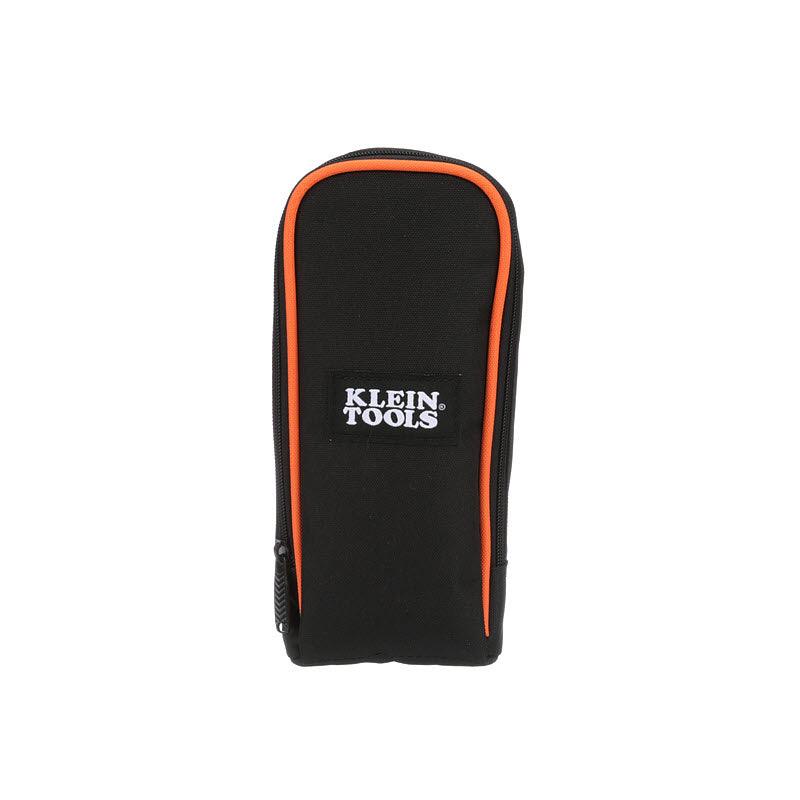

- Carrying Case
- Straight Input Test Leads
- 2 x AAA Batteries (pre-installed)
- Instruction Manual
