Description

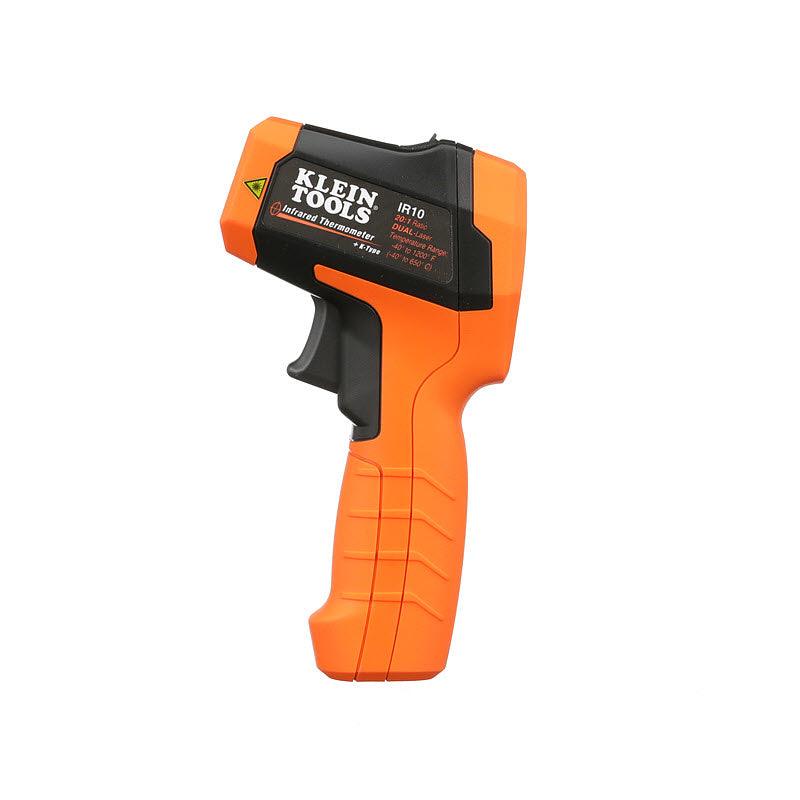

The IR10 is a professional-grade dual-laser infrared thermometer designed for precise surface temperature measurement. It combines non-contact IR sensing with a K-type thermocouple probe option, making it versatile for both spot surface readings and direct temperature measurements of air, gas, or liquids. The IR10's robust design and advanced
Features:
- Key Features and Benefits:
- Dual targeting lasers allow for precise identification of the measurement spot, improving accuracy and confidence in readings.
- Wide measurement range: -40 to 1200°F (-40 to 650°C) for both IR and K-type probe, accommodating various applications.
- Optical resolution of 20:1 (distance-to-spot ratio), enabling accurate measurements from a greater distance.
- Adjustable emissivity (0.1-1.0) provides flexibility for measuring different surface types and materials.
- Bright backlit digital display ensures readability in low ambient lighting.
- Measurement statistics functions (max, min, average, difference) streamline data analysis and documentation.
- User-definable high/low limits with simultaneous audible and visual alarms help identify out-of-range temperatures quickly.
- Rugged construction with soft-touch, over-mold housing is drop-tested to withstand falls from up to 3 meters; IP54 rated for dust and water resistance.
Specifications:
- Measurement Type: Dual-laser infrared thermometer plus K-type thermocouple probe.
- Measurement Range: -40 to 1200°F (-40 to 650°C) for both IR and probe.
- Distance-to-Spot Ratio: 20:1.
- Emissivity: Adjustable from 0.1 to 1.0.
- Accuracy: IR: ±3°F or ±1.5% (above 32°F), K-Type: ±2°F or ±1% (above 32°F).
- Display Resolution: 0.1°F (0.1°C).
- Response Time: <150 milliseconds.
- Display: Digital with backlight.
- Battery: One 9V alkaline, up to 8 hours use with laser and backlight.
- Drop Protection: 3 meters.
- Ingress Protection: IP54 (dust and water resistant).
- Dimensions: 7" (17.8 cm) length, 2.05" (5.2 cm) width, 4.49" (11.4 cm) height; Weight: 7.4 oz (210 g).
- Compliance: EN 61326-1:2013, EN 60825-1:2014, 21 CFR 1040.10/1040.11, CE, Class II Laser.

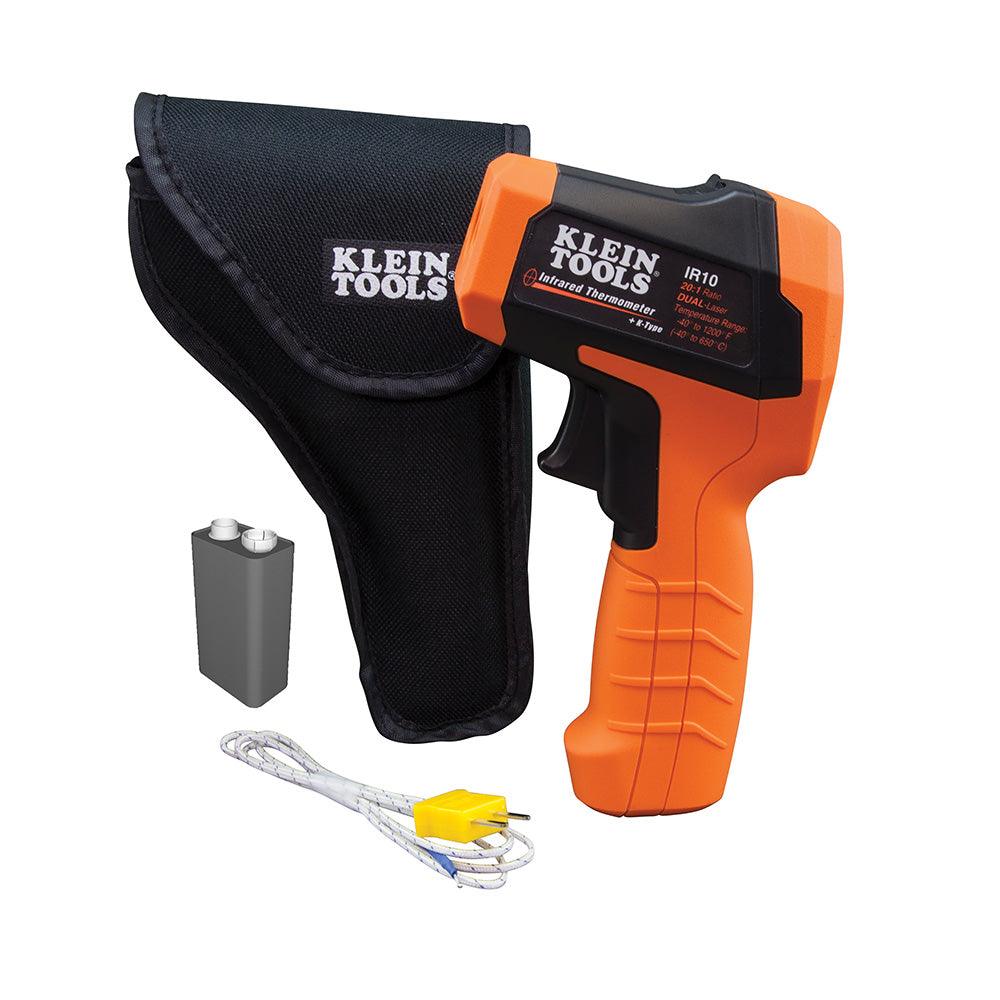

Includes:
- IR10 dual-laser infrared thermometer.
- K-type thermocouple probe.
- 9V alkaline battery.
- Custom storage pouch.
