Description

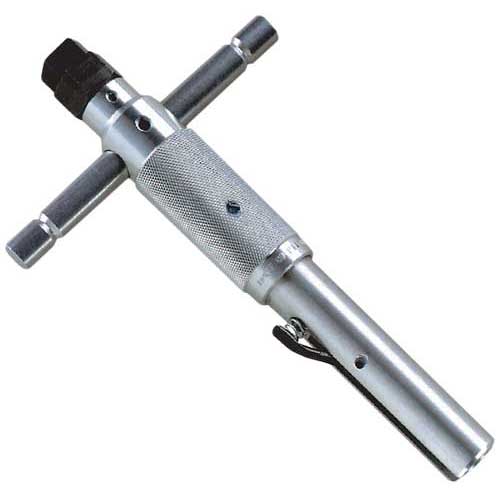

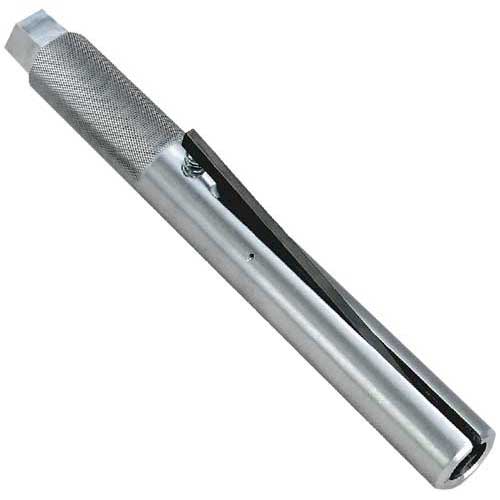

The Ripley LBIT-1T Bushing Insertion Tool is specifically designed for the safe and effective installation of 200-amp bushing inserts. Its torque-limiting mechanism ensures the correct installation torque is applied, helping prevent damage to transformer bushing wells. The tool produces a distinct click when 180 in-lbs is reached, giving the installer both audible and tactile feedback. Built for utility professionals, it features a removable T-handle and compatibility with standard wrench and square drive tools.
Features:
- Installs 200-amp bushing inserts using an internal hex socket for secure engagement
- Click-style torque limiter activates at 180 in-lbs to prevent overtightening

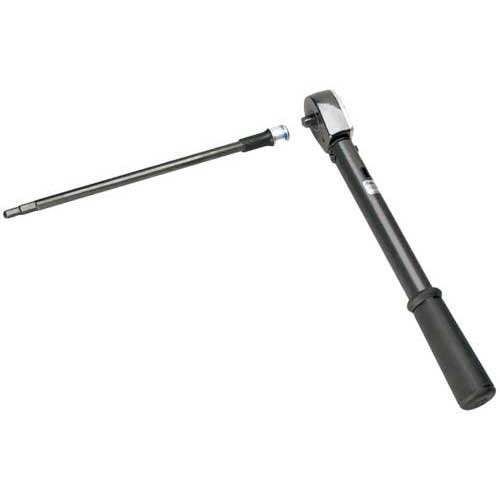

- Removable adjustable T-handle for manual control or use with 1/2" square drive
- Includes 1" (25.4 mm) square socket drive and 7/8" (22.2 mm) hex for wrench compatibility
- Features standard 'Penta' head and 5/16" hex shaft for 200-amp bushing compatibility
- Engineered for ease of use in transformer cabinet environments
Specifications:
- Preset Torque: 180 in-lbs
- Length: 14.25" (362 mm)
- Weight: 21 oz (596 g)
- Made in the USA
Includes:
- 1 x Ripley LBIT-1T 200-Amp Bushing Insertion Tool
