Description

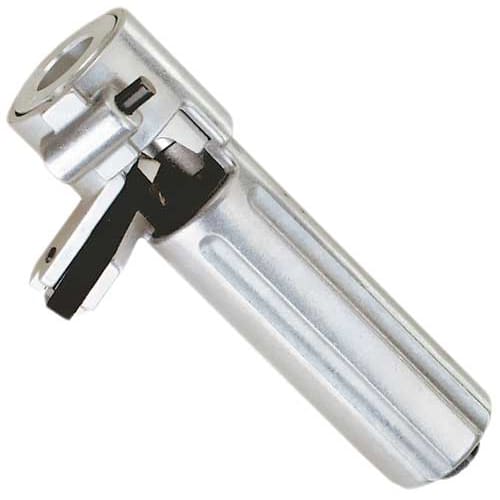

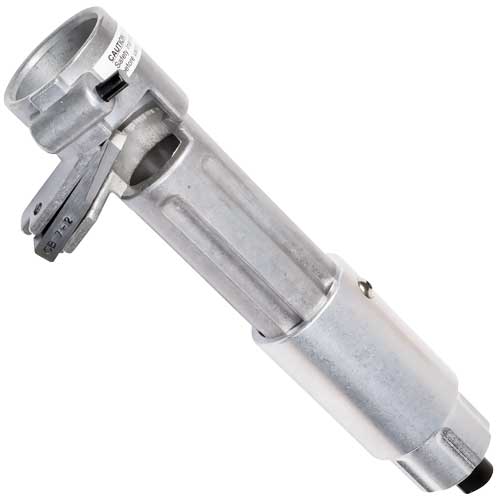

The Ripley WS5A-DA Adjustable Cable End Stripper is a precision-engineered tool for stripping XLPE, EPR, and polyethylene insulation up to 400 mils thick. Designed for primary and secondary underground distribution cables, it supports both insulation-only and combined insulation/semi-con stripping. With tool-free adjustment features, a built-in strip stop scale, and compatibility with drill or manual operation, the WS5A-DA offers unmatched versatility for utility professionals.
Features:
- Strips XLPE, EPR, and PE insulation up to 400 mils thick
- Supports insulation-only or simultaneous insulation and semi-con removal
- Equipped with guarded cutting blade to prevent injury and prolong blade life
- Includes bushings for a variety of insulation and semi-con diameters
- Works with the SW 2 Series Ratchet Wrench for improved leverage

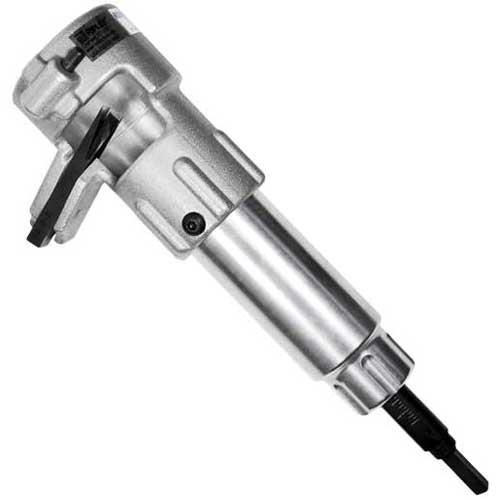

- 3/8" drill adapter allows for powered operation in addition to manual use

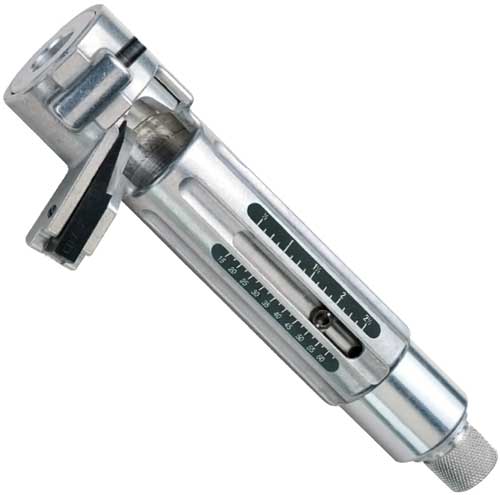

- Adjustable strip stop mechanism with visible scale eliminates the need for a hex wrench
- Stop bar available with metric and imperial markings
Specifications:
- Cable Compatibility: Primary & Secondary Underground Distribution
- Cable Access: End
- Minimum Cable Diameter: 0.26" (6.6 mm)
- Maximum Cable Diameter: 1.335" (33.9 mm)
- Insulation Thickness: Up to 400 mils
- Voltage Range: 600 V to 35 kV
- Shaves Semi-Con: Yes
- Strip Length: 0.625" – 2.5" (15.875 – 63.5 mm)
- Drive Attachments: 3/8" Drill, Manual Wrench
- Replacement Blade Part #: 10324
- Adjustable Strip Stop Bar: Yes
- Strip Stop Scale: Yes
- Length: 8" (203 mm)
- Weight: 1.2 lb (544 g)
- Made in China
Includes:
- 1 x Ripley WS5A-DA Adjustable Cable End Stripper
