Description

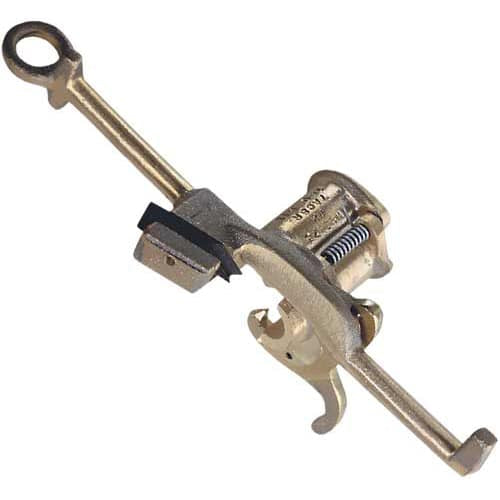

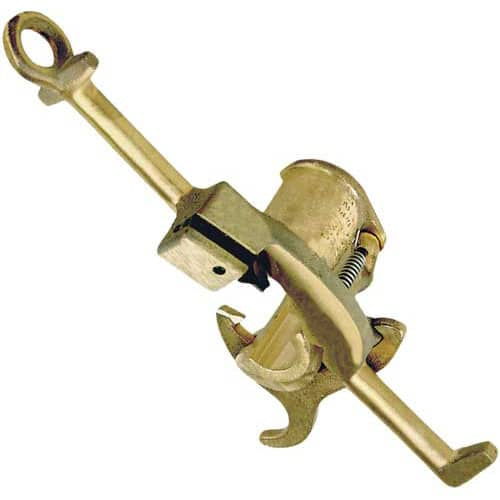

The Ripley WS 2 Series is a non-adjustable cable stripper engineered for mid-span and end stripping of tree wire and spacer cable. Designed for cables with a fixed diameter range from 0.75″ to 1.25″ (19.05 to 31.75 mm), it enables clean insulation removal with a single, continuous motion. Built for gloved hand and hot stick operation, it is available in multiple handle styles to meet the needs of utility professionals.
Features:
- Fixed cable diameter range: 0.75″ to 1.25″ (19.05 to 31.75 mm)
- Strips to any length at any location along the cable, including mid-span or end
- Operates in one continuous stripping motion
- Supports gloved hand or hot stick use
- Available in Hook/Ring, 3/4″ Rings, or Plastic Handle configurations
- Supports insulation thicknesses from 45 mils to over 200 mils, depending on model
Compatibility:
- Cable Type: Tree Wire, Spacer Cables
- Cable Access: Mid-Span, End
- Min. Cable Diameter: 0.75″ (19.05 mm)
- Max. Cable Diameter: 1.25″ (31.75 mm)
- Voltage Range: 5 kV to 35 kV
Specifications:
- Length: 11″ (279 mm)
- Weight: 2.5 lb (1.13 kg)
Model Variants:
| Model | Part # | Handles | Replacement Blade | Insulation Thickness | Cable Diameter |
|---|---|---|---|---|---|
| WS 2 | 18100-XXX | Hook / Ring | 10114 / 10113 | 45–125 mils / 125–200 mils | 0.75″–1.25″ (19.05–31.75 mm) |
| WSR 2 | 18200-XXX | 3/4″ Rings | 10114 / 10113 | 45–125 mils / 125–200 mils | 0.75″–1.25″ (19.05–31.75 mm) |
| WSP 2 | 18500-XXX | Plastic Handles | 10114 / 10113 | 45–125 mils / 125–200 mils | 0.75″–1.25″ (19.05–31.75 mm) |
| WSK 2 | 19700-XXX | Hook / Ring | 19702 / 10112 | Over 200 mils | 0.32″–0.79″ (8.13–20.07 mm) |
| WSRK 2 | 19800-XXX | 3/4″ Rings | 19702 / 10112 | Over 200 mils | 0.32″–0.79″ (8.13–20.07 mm) |
| WSPK 2 | 20000-XXX | Plastic Handles | 19702 / 10112 | Over 200 mils | 0.32″–0.79″ (8.13–20.07 mm) |
Includes:
- 1 x Ripley WS 2 Series Cable Stripper (model and handle style as selected)
