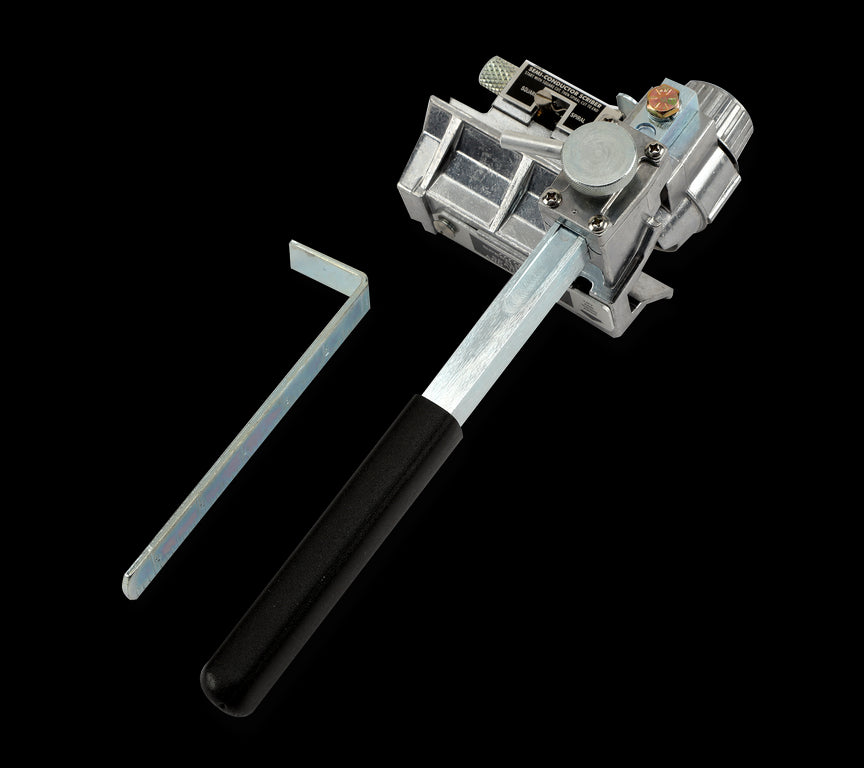

Speed Systems 1542-2AS Combination Stripper Tool

1542-2AS Series Combination Stripper

The 1542-2AS Series Stripper is a specialized tool designed to strip insulation from power cables and score the cable's semi-conductive outer shield with precise accuracy. It combines the functionality of two tools into one, improving efficiency and precision.

Features:

• Dual functionality: Performs both cable insulation stripping and semi-conductive shield scoring in one tool, eliminating the need for separate tools
• Precise adjustability: Features adjustable semi-con scoring from .001" to .090", allowing for highly accurate cable preparation
• Versatile cable handling: Works with multiple cable types including PE, XLP, and EPR, making it suitable for various applications
• Enhanced safety: The design provides greater speed and increased safety during cable preparation operations
• No bushings required: Simplifies operation and reduces additional parts needed
• Maximizes installation reliability: Precise blade depth adjustment ensures consistent and reliable cable preparation
• Single-handle operation: Ergonomic single-handle design makes the tool easier to use

Specifications:

• Cable O.D. Range: 1/2" to 1-3/4" (12.7 - 44.5 mm)
• Cable Types Compatible: Primary 5–35kV Single Conductor, Solid/Stranded
• Min. Wire Size: 0.50" OD
• Operation Type: Single Handle with Wedge Blade
• Application: For power cable preparation, particularly for primary cables

Includes:

• 1542-2AS Series Combination Stripper tool
• Wedge blade (pre-installed)
• Spare straight blade
• Replacement blades available separately (not included in package)
