Description

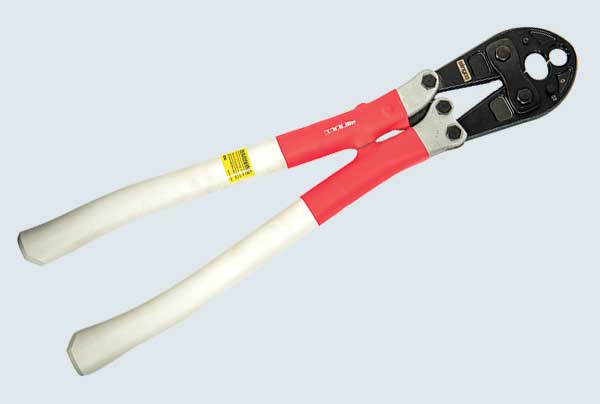

The TCR7002 is a manual mechanical crimping tool designed to handle a wide range of utility distribution service connections, including line, pole, and home installations. Engineered by Slingco, it delivers reliable, high-force crimps for both full-tension and non-tension connectors, making it well-suited for professional electrical and utility applications.
Features:
- Provides a crimp force of 9,000 lbs, ensuring secure and durable crimps for various connector types.
- Compatible with ‘O’ and ‘D’ groove crimping applications, offering versatility for different connection requirements.
- Equipped with a ‘D3’ groove that accepts ‘W’ style die inserts, making it easy to switch dies for installing taps, splices, and terminal connectors.
- Positive lock, spring-loaded die buttons securely hold die inserts in place, improving safety and workflow efficiency.
- Ergonomic handles are designed for comfortable use and maximum leverage, reducing user fatigue during repetitive operations.
- Also accommodates Kearney-type dies for further compatibility with industry-standard crimping needs.
- Robust mechanical construction ensures long service life and reliability, even in demanding field conditions.
- Lightweight (7 lbs) and compact (25.75 inches long), making it portable and easy to handle during installation work.
Specifications:
- Crimp Force: 9,000 lbs
- Groove Type: O & D
- Accepts: ‘W’ style die inserts (‘D3’ groove)
- Accepts: Kearney-type dies (with optional seat)
- Handle Length: 25.75 inches
- Weight: 7 lbs
- What’s included in the package:
- TCR7002 manual mechanical crimping tool
- Ergonomic handles pre-installed
- ‘D3’ groove for use with ‘W’ style die inserts (dies typically sold separately)
- Positive-lock, spring-loaded die buttons
- Note: Specific die inserts and Kearney seat accessories may be sold separately, depending on distributor or kit configuration.
