Description
The Milwaukee 3693-22CX M18 Compact Brushless 2-Tool Combo Kit is designed for professionals and serious DIYers who want a compact, durable, and efficient cordless tool set. This kit combines a highly capable 1/2" Hammer Drill and a 1/4" Hex 3-Speed Impact Driver, both featuring Milwaukee’s advanced brushless motor technology for enhanced power, runtime, and tool life.
Features:
- Compact design: The hammer drill measures just 5.8 inches in length and 2.3 lbs (tool only), making it ideal for overhead work and confined spaces. The impact driver is even smaller at 4.4 inches long and 2.1 inches wide for maximum portability and access in tight areas.
- Brushless motor technology: Both tools use Milwaukee’s brushless motors, delivering higher efficiency, longer life, and better overall performance compared to brushed alternatives.
- High torque and speed: The 1/2" Hammer Drill delivers up to 600 in-lbs of torque and 0–1,700 RPM, suitable for a wide range of drilling and fastening jobs. The 1/4" Impact Driver provides 1,700 in-lbs of max torque and speeds up to 3,600 RPM for rapid fastening.
- REDLINK Intelligence: Optimizes tool performance and prevents overload by allowing advanced communication between the tool, battery, and charger, ensuring best-in-class performance and protection.
- All-metal construction: All-metal gear case and 1/2" metal chuck for maximum durability on the jobsite.
- Enhanced battery technology:
Specifications:
- Torque: 600 in-lbs (with 4.0XC Battery)
- Speed: 0–550 / 0–1,700 RPM
- Length: 5.8 inches
- Weight: 2.3 lbs (tool only)
- Chuck Size: 1/2" metal
- Motor: Brushless
- Max Torque: 1,700 in-lbs
- Speed: 0–3,600 RPM
- Impacts Per Minute (IPM): 0–4,900
- Length: 4.4 inches
- Width: 2.1 inches
- Weight: 1.7 lbs (tool only)
- Motor: Brushless
- Drive: 1/4" Hex Chuck
- 3-Mode Drive Control
- Batteries:
- M18 REDLITHIUM XC 4.0 Ah Extended Capacity Battery
- M18 REDLITHIUM CP2.0 Ah Compact Battery
- Charger:
- M18 & M12 Multi-Voltage Charger (charges both M18 and M12 batteries)
- What’s Included in the Package:

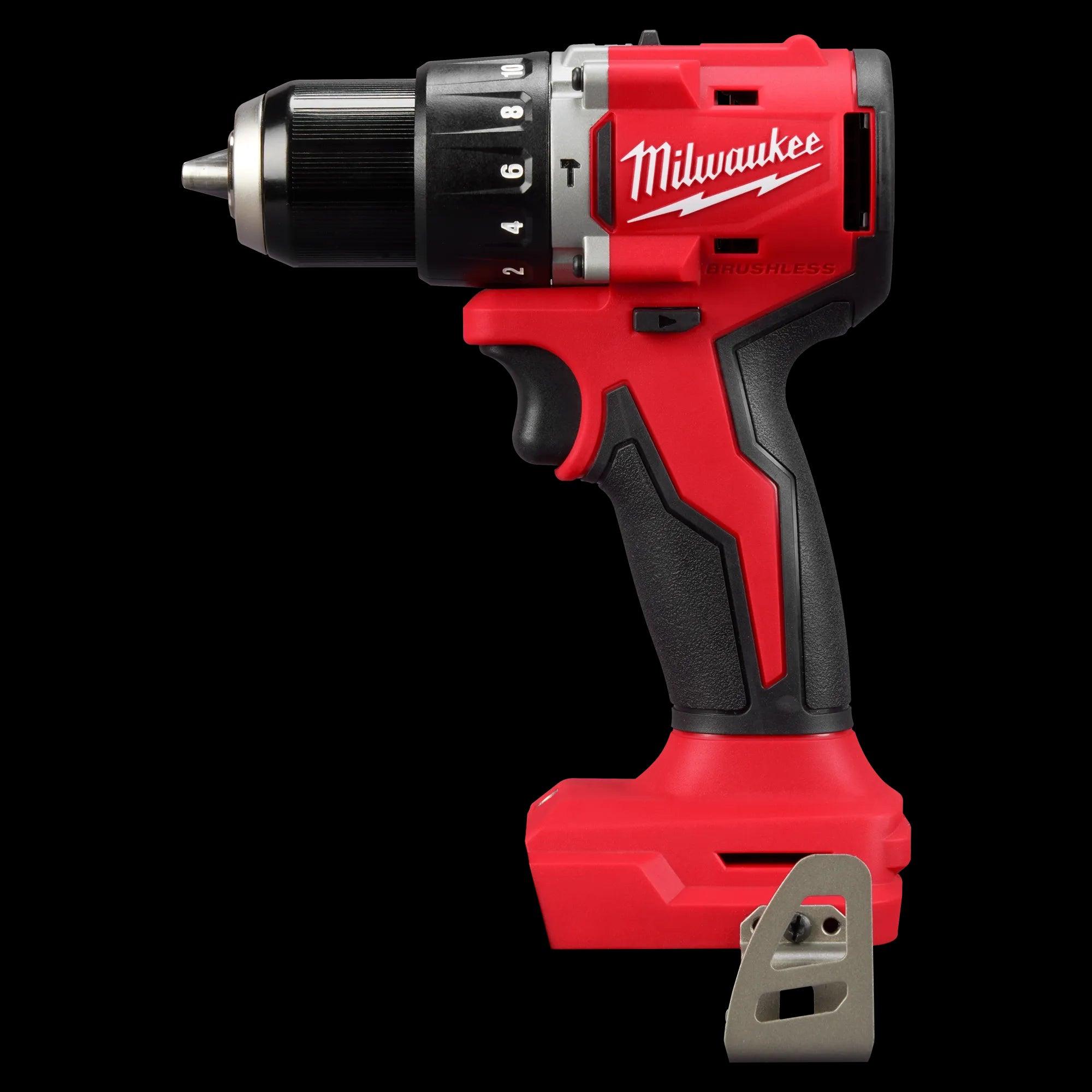

- (1) M18 Compact Brushless 1/2" Hammer Drill/Driver (3602-20)
- (1) M18 Compact Brushless 1/4" Hex 3-Speed Impact Driver (3651-20)
- (1) M18 REDLITHIUM XC4.0 Extended Capacity Battery Pack (48-11-1840)
- (1) M18 REDLITHIUM CP2.0 Battery (48-11-1820)
- (1) M18 & M12 Multi-Voltage Charger (48-59-1812)
- (1) Contractor Bag
- Owner’s Manual
Includes:
- 3-Mode Drive Control: The impact driver offers three speed/power settings, providing greater control and versatility for various applications.
- System compatibility: Part of the Milwaukee M18 platform, fully compatible with over 250 Milwaukee M18 tools and accessories.
- Technical Specifications:
- Torque: 600 in-lbs (with 4.0XC Battery)
- Speed: 0–550 / 0–1,700 RPM
- Length: 5.8 inches
- Weight: 2.3 lbs (tool only)
- Chuck Size: 1/2" metal
- Motor: Brushless
- Max Torque: 1,700 in-lbs
- Speed: 0–3,600 RPM
- Impacts Per Minute (IPM): 0–4,900
- Length: 4.4 inches
- Width: 2.1 inches
- Weight: 1.7 lbs (tool only)
- Motor: Brushless
- Drive: 1/4" Hex Chuck
- 3-Mode Drive Control
- Batteries:
- M18 REDLITHIUM XC 4.0 Ah Extended Capacity Battery
- M18 REDLITHIUM CP2.0 Ah Compact Battery
- Charger:
- M18 & M12 Multi-Voltage Charger (charges both M18 and M12 batteries)
- What’s Included in the Package:
- (1) M18 Compact Brushless 1/2" Hammer Drill/Driver (3602-20)
- (1) M18 Compact Brushless 1/4" Hex 3-Speed Impact Driver (3651-20)
- (1) M18 REDLITHIUM XC4.0 Extended Capacity Battery Pack (48-11-1840)
- (1) M18 REDLITHIUM CP2.0 Battery (48-11-1820)
- (1) M18 & M12 Multi-Voltage Charger (48-59-1812)
- (1) Contractor Bag
- Owner’s Manual
