Description

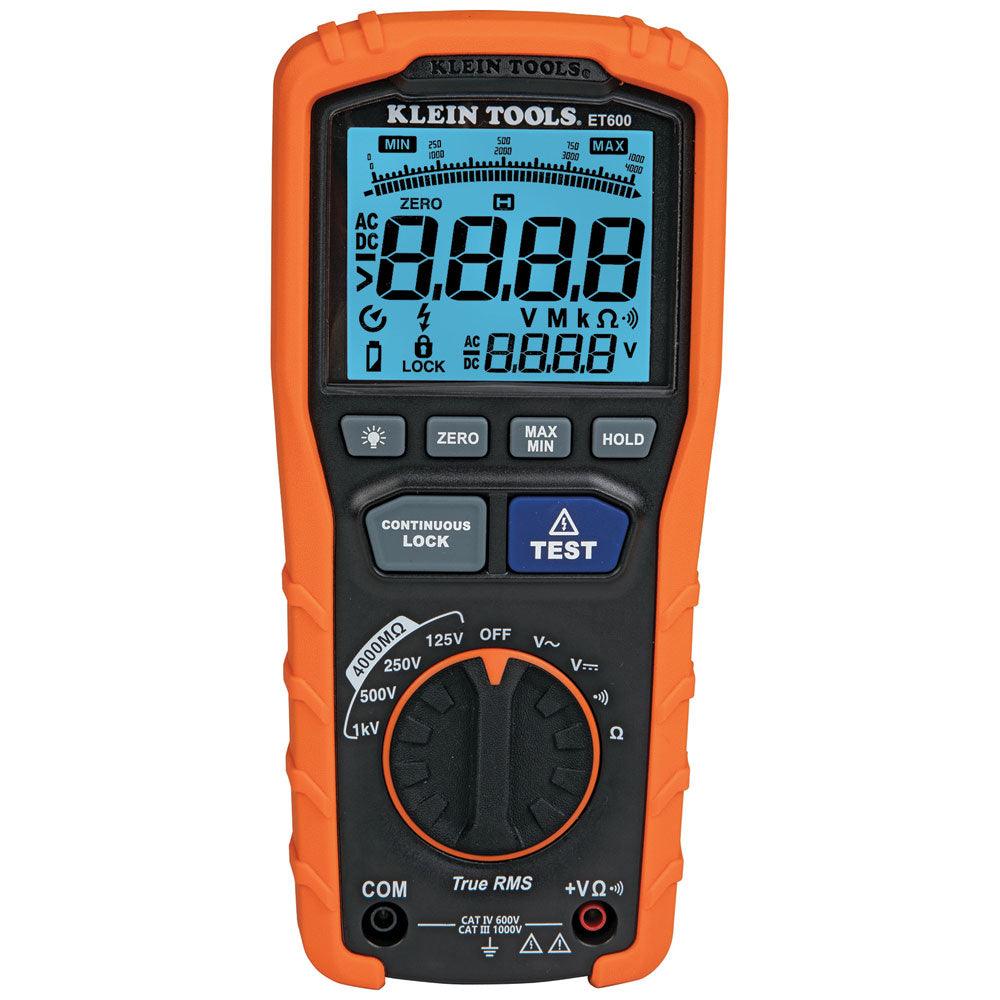

The Klein Tools ET600 is a professional-grade, digital insulation resistance tester and True RMS multimeter designed for installation, troubleshooting, and preventive maintenance of electrical wiring and equipment. It delivers reliable insulation resistance measurements up to 4000 megaohms (MΩ) across multiple test voltages and offers versatile voltage, resistance, and continuity testing capabilities for demanding jobsite applications.
Features:
- Provides insulation resistance testing up to 4000MΩ at selectable test voltages of 125V, 250V, 500V, and 1000V DC for comprehensive diagnostics of electrical systems.
- Measures AC and DC voltages up to 1000V, resistance, and continuity, making it suitable for a wide range of electrical testing tasks.
- Utilizes automatic ranging True Root Mean Square (TRMS) technology for consistently accurate readings, even with non-linear loads.
- Features intuitive test and lock buttons for straightforward operation, with a convenient lock function for hands-free insulation testing.
- Equipped with a warning alarm and high voltage icon for clear voltage detection and increased user safety.
- Dual-function backlit LCD display with bar graph, Auto-power off, Max/Min, and Hold icons ensures easy, clear viewing in all lighting conditions.

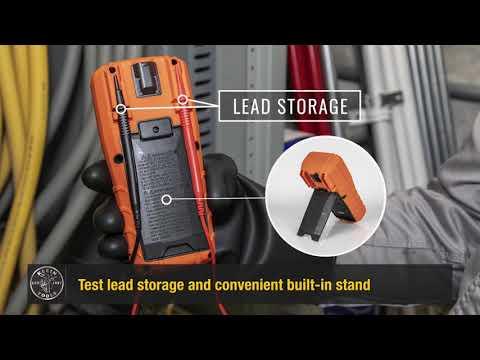

- Built-in stand and optional magnetic hanger allow for secure, hands-free operation to keep the tester stable and accessible during use.
- Designed with robust safety in mind: CAT IV 600V and CAT III 1000V safety ratings, and compliance with EN61557-1, -2, and -4 standards.
Specifications:
- Insulation resistance range: Up to 4000MΩ
- Test voltages: 125V, 250V, 500V, 1000V DC
- Voltage measurement: Up to 1000V AC/DC
- Resistance measurement: Up to 4kΩ
- Display: 4000-count backlit LCD with bar graph
- Battery: 6 x AA alkaline batteries
- Dimensions: Approximately 7.93" (L) x 3.59" (W) x 2.32" (H) (200 mm x 90 mm x 60 mm)
- Weight: About 1.4 lbs (0.6 kg)
- Safety ratings: CAT IV 600V, CAT III 1000V
- Operating temperature: 14°F to 122°F (-10°C to 50°C)
- Storage temperature: -4°F to 140°F (-30°C to 60°C)
- Conforms to EN61557-1, EN61557-2, EN61557-4 standards.
Includes:
- ET600 Insulation Resistance Tester
- Two right angle test leads with CAT III/CAT IV safety caps
- Two heavy-duty alligator test leads
- Six AA alkaline batteries
- Carrying case
- User’s manual
