Description

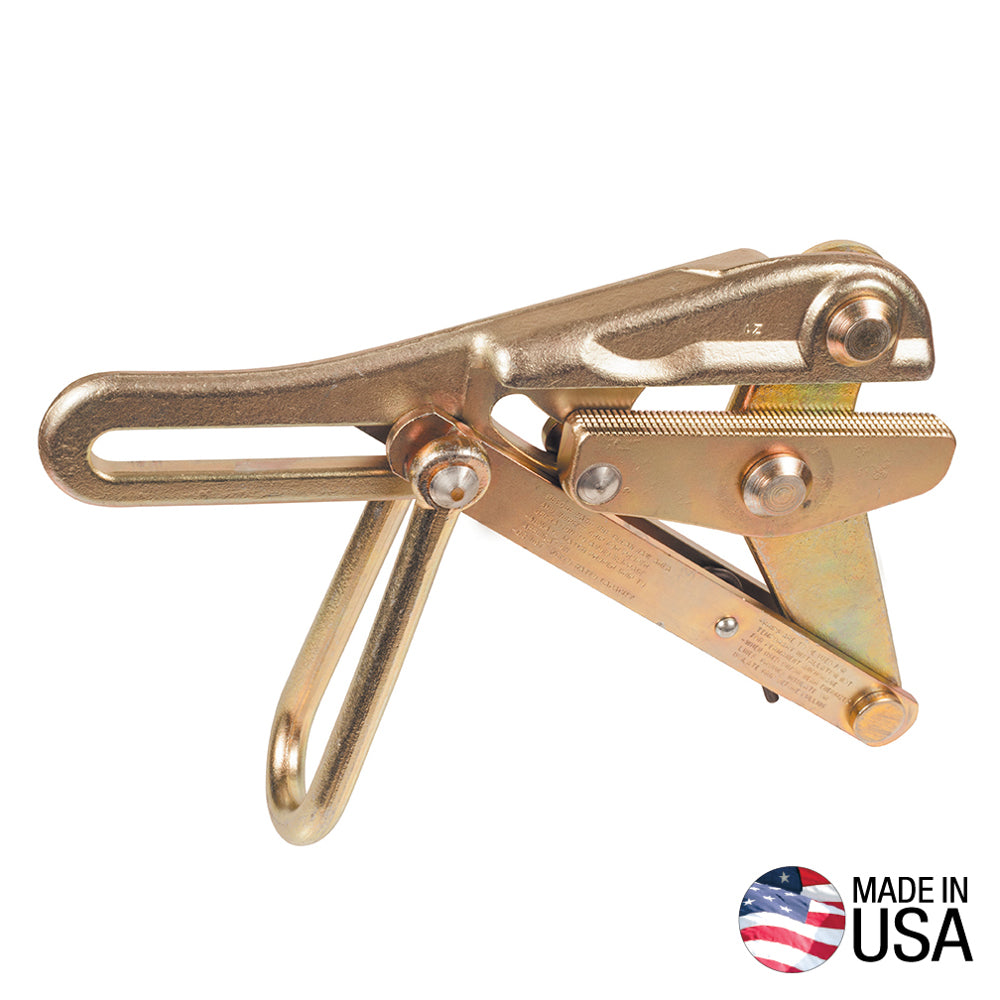

The Klein Tools 16845C Chicago Grip is a specialized tool designed for gripping coated guy wire and extra high strength (EHS) cables during installation or maintenance work. It
Features:
- Key Features and Benefits:
- Aggressive sawtooth jaw profile that effectively resists build-up from galvanized coating on guy strand and EHS cables, ensuring consistent gripping performance.
- Extended 5-inch jaw length that increases surface area contact with cables, which minimizes potential damage to the cable while maintaining a secure hold.
- Manufactured from drop-forged, heat-treated steel, providing excellent durability and strength for demanding field applications.
Specifications:
- Type: Chicago Grip
- Application: Wire Pulling, specifically for coated guy wire
- Material: Drop-forged, heat-treated steel
- Overall Length: 13.3 inches (33.8 cm)
- Jaw Length: 5 inches
- Minimum Cable Diameter: 0.16 inches (4.06 mm)
- Maximum Cable Diameter: 0.55 inches (13.97 mm)
- Maximum Safe Load: 8,000 pounds (3,629 kg)
- Special Features: Sawtooth jaw profile, locking handle, automatic closing spring
Includes:
- Features a locking handle design that keeps the jaw open while the grip is being placed on a cable using a hot stick, improving safety and ease of use in elevated installations.
- Versatile cable compatibility, designed to work effectively with cable diameters ranging from 0.16 inches to 0.55 inches (4.06 mm to 13.97 mm).
- Impressive load capacity with a maximum safe load rating of 8,000 pounds (3,629 kg), suitable for heavy-duty pulling applications.
Made in the USA, ensuring high manufacturing standards and quality control.
Technical Specifications: - Type: Chicago Grip
- Application: Wire Pulling, specifically for coated guy wire
- Material: Drop-forged, heat-treated steel
- Overall Length: 13.3 inches (33.8 cm)
- Jaw Length: 5 inches
- Minimum Cable Diameter: 0.16 inches (4.06 mm)
- Maximum Cable Diameter: 0.55 inches (13.97 mm)
- Maximum Safe Load: 8,000 pounds (3,629 kg)
- Special Features: Sawtooth jaw profile, locking handle, automatic closing spring
- Package Contents:
