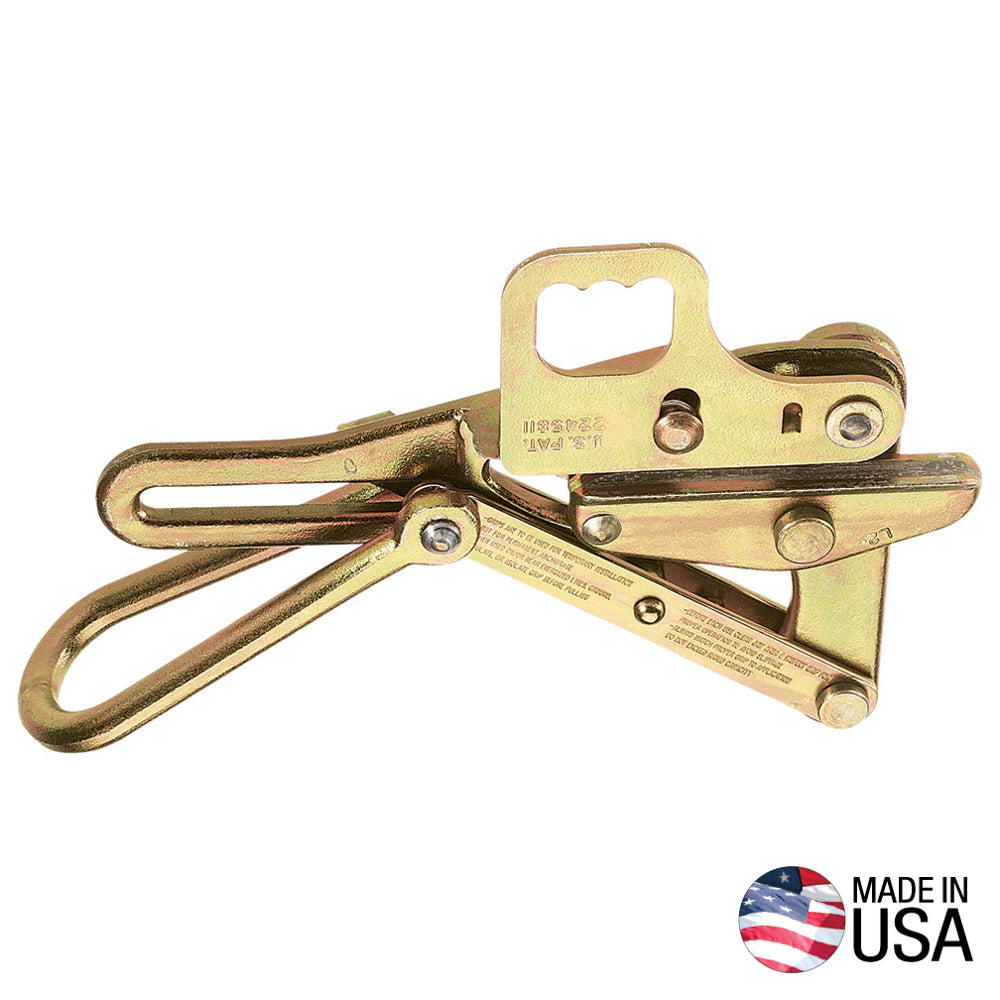

Klein Tools Chicago Grip with Hot-Line Latch .218 - 55 Inch for EHS Cable

The Klein Tools 1684-5H is a Chicago Grip with Hot-Line Latch designed for securely pulling and tensioning various types of cable and wire, particularly in utility, construction, and lineman applications. Engineered for versatility and safety, it is compatible with a range of conductors including aluminum, copper, weatherproof coated wire, and messenger or guy strand cables.

Features:

• Accommodates cable diameters from 0.218 to 0.55 inches (5.54 to 13.97 mm), making it suitable for use on aircraft, EHS, messenger, and guy strand cables.
• Forged, robust steel construction for enhanced durability and long service life in demanding environments.
• Features a hot-line latch, allowing placement on the wire via hot-line stick; once the stick is removed, the latch automatically closes to prevent accidental disengagement from the wire, increasing operator safety.
• Double V inside-jaw contour provides a strong, non-slip grip on both bare and insulated conductors.
• Capable of withstanding a maximum safe load of 8,000 pounds (3,629 kg), ensuring reliable performance under heavy tension.
• Locking handle keeps the jaw open while placing the grip onto the cable with a hot stick, streamlining installation procedures.
• Compatible with a wide range of wire types, including aluminum, copper, and PVC-coated conductors, for greater flexibility.
• Manufactured in the USA and covered by Klein's lifetime warranty for defects in materials and workmanship.

Specifications:

• Type: Chicago Grip
• Material: Forged steel
• Jaw Type: Double V
• Jaw Length: 5 inches (12.7 cm)
• Cable Diameter Range: 0.218 to 0.55 inches (5.54 to 13.97 mm)
• Cable Types: Aircraft, EHS, Messenger, Guy Strand, Aluminum, Copper, Weatherproof coated wire, PVC-covered conductors
• Maximum Safe Load: 8,000 lb (3,629 kg)
• Weight: Approximately 6.5–6.7 lb (2.9–3.0 kg)
• Hot Latch: Yes
• Spring: Yes
• Locking Handle: Yes
• Made in the USA
• What’s Included in the Package:
• One Klein Tools 1684-5H Chicago Grip with Hot-Line Latch
