Description

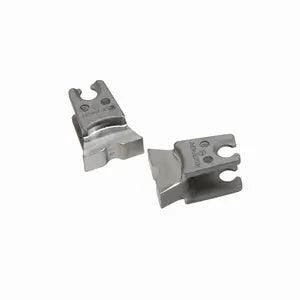

The Burndy U654 is a stainless steel, U-style crimping die engineered for making reliable, high-quality electrical connections in utility and industrial applications. Designed to be used with several hydraulic crimping tools, the U654 is suitable for a range of conductor sizes and is part of a color-coded connection system for easy identification and safety.
Features:
- Made from corrosion-resistant stainless steel for enhanced durability and longevity in harsh environments.
- Supports a wide conductor range: accommodates #2 AWG to 250 kcmil (4/0-2 flex) for main wire, and #14 AWG to #8 AWG for tap connections.
- Compatible with Y35, Y750, PAT750, Y46, and PAT46 hydraulic crimping tools (PUADP1 adapter required for Y46 and PAT46 tools).
- Delivers a robust 12-ton crimp force, ensuring secure and stable electrical connections.
- Features a circumferential crimp for uniform connection integrity.
- Part of a color-coded system—U654 is marked in purple, matching compatible lugs and taps for quick size verification.
- Die index 654 is embossed on the connector after crimping, providing traceability and installation confirmation.
- Compliant with EU RoHS directives, supporting environmentally responsible projects.
Specifications:
- Die Type: U-style/twin type
- Material: Stainless steel
- Crimp Force Capacity: 12 tons
- Conductor Capacity: #2 AWG to 250 kcmil main wire; #14 to #8 AWG tap wires
- Used On: Y35, Y45, Y46, Y750, PAT750 hydraulic tools (Y46/PAT46 require PUADP1 adapter)
- Die Index: 654 (embossed on connector after crimp)
- Color Code: Purple
- RoHS Compliance: Yes
- Approximate Weight: 0.2 lbs
Includes:
- One Burndy U654 stainless steel U-die (die only; no additional accessories included).
