Description

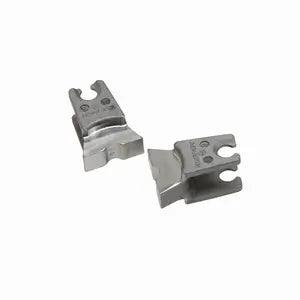

BURNDY U39ART is a high-quality stainless steel U-die used for crimping large gauge aluminum electrical connectors. Engineered for compatibility with BURNDY 12-ton HYPRESS tools, it ensures reliable electrical connections on 700–750 kcmil (MCM) aluminum conductors, making it suitable for industrial and utility applications requiring precise, high-strength crimps.
Features:
- Constructed from durable stainless steel to ensure longevity and corrosion resistance.
- Designed for 700–750 kcmil aluminum wire, supporting both lugs and splices for broad application flexibility.
- Utilizes a circumferential crimp design that evenly compresses the connector, resulting in high pull-out strength and superior electrical conductivity.
- Color-coded yellow with die index number 936 for easy identification and correct matching with compatible connectors.
- Compatible with BURNDY 12-ton crimping tools (such as Y35, Y750, PAT750, Y46, PAT46 with PUADP1 adapter), streamlining field operations and reducing tool inventory.
- Meets or exceeds industry standards for crimp performance, ensuring quality and safety in demanding environments.
- Circumferential crimp leaves a symmetrical barrel, simplifying insulation and improving installation efficiency.
- Embossed die index number provides easy visual inspection to verify correct die usage.
Specifications:
- Material: Stainless steel
- Die type: U-die, twin style, circumferential crimp
- Application range: 700 kcmil – 750 kcmil aluminum wire (uninsulated lugs and splices)
- Die index: 936 (yellow color code)
- Crimp force capacity: 12 tons
- Compatibility: BURNDY Y35, Y750, PAT750, Y46, PAT46 (with adapter)
- Weight: Approximately 0.26 lb
- RoHS compliant
Includes:
- One U39ART U-die (die set only; adapter and crimping tool sold separately)
