Description

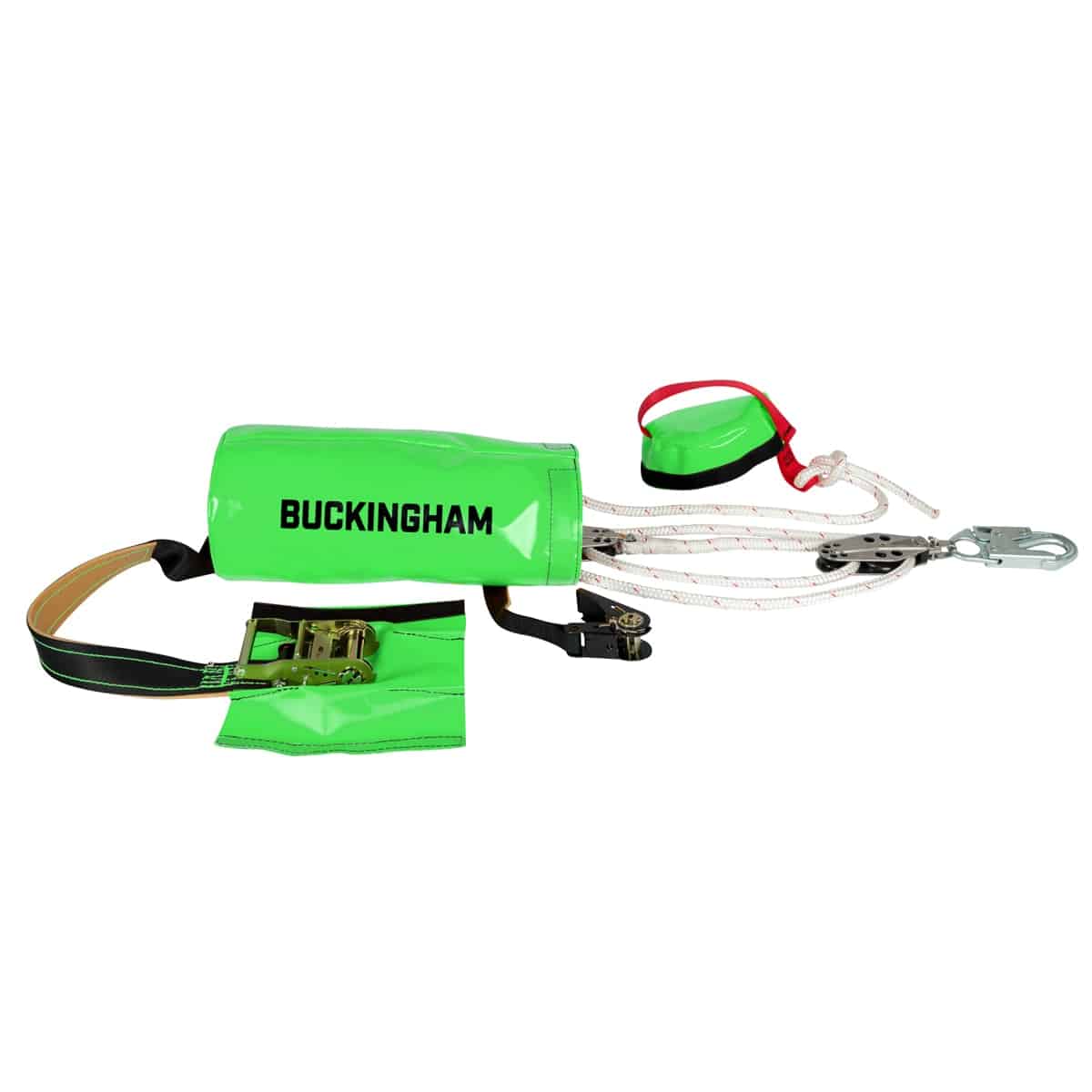

The Buckingham Hurt Man Bucket Truck Rescue System (Model 3813D1Q6) is the latest high-performance aerial rescue solution engineered for rapid emergency response when bucket truck operators become incapacitated. This professional-grade safety equipment ensures prompt and efficient rescue of injured personnel from elevated bucket trucks, significantly reducing response time and preventing further injuries in critical situations.
Key Features:
- Permanently mounts to the bucket truck boom for immediate deployment, minimizing response time during emergencies and ensuring safety equipment is always accessible when needed.
Technical Specifications:
- Pulley assembly: 4:1 marine-grade stainless steel with corrosion-resistant properties
- Rescue rope: Premium 7/16" braided construction, supports up to a 20-foot vertical lift
- Primary pulley: Width 2 3/8", Weight 11.3 oz, optimized for smooth operation
- Secondary pulley: Length 7 3/16", Width 2 3/8", Weight 11.9 oz, designed for stability
- Arc flash tested and certified; dielectric hardware rated at 9KV for electrical safety
- Fully compliant with ASTM F887 and ANSI Z359 industry safety standards
Complete System Includes:
- Utilizes a 4:1 marine-grade stainless steel pulley system, providing efficient mechanical advantage for lifting an injured worker with a smooth operation.
- Equipped with 7/16-inch braided rope, supporting up to a 20-foot lift to accommodate most aerial lift rescue scenarios.
- Bottom deployment design enables fast access to the rescue snap, optimizing speed and ease of use during a rescue.
- Meets ASTM F887 Arc Flash Requirements and ANSI Z359 standards, ensuring compliance with leading industry safety regulations.
- Dielectric hardware rated up to 9KV enhances user safety in high-voltage environments.
- Lightweight components and quick-connect buckles ensure the system is straightforward and fast to deploy.
- Technical Specifications:
- Pulley assembly: 4:1 marine-grade stainless steel
- Rope: 7/16" braided, supports up to a 20-foot lift
- Pulley 1: Width 2 3/8", Weight 11.3 oz
- Pulley 2: Length 7 3/16", Width 2 3/8", Weight 11.9 oz
- Arc flash tested; dielectric hardware rated at 9KV
- Meets ASTM F887 and ANSI Z359 safety standards
- What's Included in the Package:
- Hurt Man Bucket Truck Rescue System (model 3813D1Q6), including all mounting hardware
- Boom strap with dee ring for secure attachment
- 4:1 pulley assembly (marine-grade stainless steel)
- 7/16" braided rescue rope (sufficient for 20' lift)
- Water-resistant storage bag for on-boom or compartment storage
- Necessary connection and deployment hardware
Collections:
This product is available in the following collections:
This product is available in the Bucket Truck Safety Equipment, Emergency Rescue Systems, and OSHA-Compliant Aerial Rescue Equipment collections.
