Description

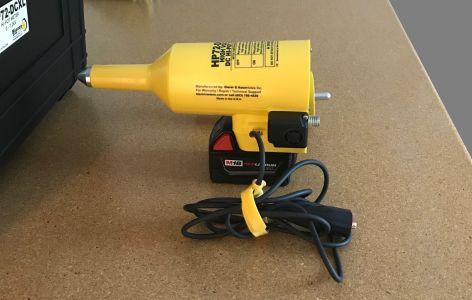

The HP72DCXL-K is a battery-powered Hi-Pot tester specifically engineered for testing de-energized 15kV class cables in the field. This tool is commonly used by utility and electrical professionals to verify insulation integrity by applying a high DC voltage and checking for dielectric breakdown or leakage.
Features:
Includes:
- Technical Specifications:
- Output Voltage: Approximately 8,000 volts DC.
- Input Power: 18V rechargeable battery located in the base of the unit.
- Application: For Hi-Pot testing of de-energized 15kV class cables only.
- Battery Status Indicator: Built-in on the battery pack for quick charge checks.
- Safety Features: Audible and visual alarms, safety switch interlock for voltage detection vs. Hi-Pot mode.
- Construction: Durable, field-ready housing with reinforced probe and protective internal epoxy.

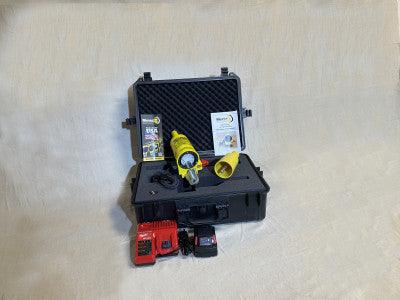

- What's Included in the Package:
- HP72DCXL-K Hi-Pot tester unit
- 18V rechargeable battery pack
- One bushing adapter
- One grip-all clamp
- Hard carrying case for safe storage and transport
Features:
- Transforms 18V from the rechargeable battery to approximately 8,000 volts DC, enabling effective high voltage insulation testing on 15kV class cables.
- Dual-mode operation: When the safety switch is closed, the device acts as a voltage detector and will sound a warning alarm if approaching an energized source; when the safety switch is open and the toggle switch is activated, the Hi-Pot mode applies high voltage DC for testing.
- Audible and visual alarm in voltage detection mode enhances safety by alerting the user to energized cables before testing.
- Integrated battery test button on the battery pack allows users to check battery charge status instantly and avoid downtime during testing.
- Designed for use only on de-energized cables, reducing risk to personnel and equipment during insulation testing.
- Rugged construction with robust internal components and protective casing ensures durability in demanding field conditions.
- Easy to operate with clear safety interlocks and straightforward testing procedures, minimizing training time and risk of misuse.
- Package
Specifications:
- Output Voltage: Approximately 8,000 volts DC.
- Input Power: 18V rechargeable battery located in the base of the unit.
- Application: For Hi-Pot testing of de-energized 15kV class cables only.
- Battery Status Indicator: Built-in on the battery pack for quick charge checks.
- Safety Features: Audible and visual alarms, safety switch interlock for voltage detection vs. Hi-Pot mode.
- Construction: Durable, field-ready housing with reinforced probe and protective internal epoxy.
