Description
The 83280 has the following features:
The 5-Position Selector Switch Consists of:

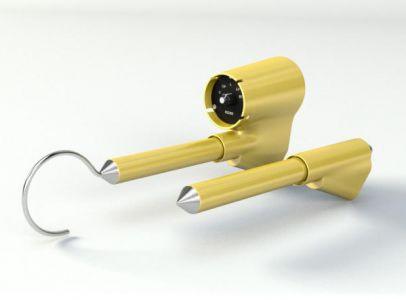

Each 83280 Kit comes standard with a straight probe, hook probe, 8ft. interconnect cable, 8ft. extension cable, 3kV power supply, 6VDC battery, instruction manual, padded storage case.
Features:
- Can be used as a Stand-Alone Voltage Detector without the Second Probe
- A Conventional Phasing Meter both Overhead and URD Applications
- Phase Capacitive Test Points
- A Large Easy to Read Analog Meter
- Meter Housing is Completely Shielded to Minimize Stray Field Indications
- An Insulated (35kV) Interconnect Cable with Second Probe
- Each Probe is Impact and Water Resistant
- Meter is Stored in a Highly Durable Padded Carrying Case
- C - Indicates the Voltage on Capacitive Test Points
- CP - Phases Using Capacitive Test Points
- L - Detects Voltage on Overhead and Underground Lines
- LP - Phases on Overhead and URD Primary Systems
- BT - Tests Internal Meter Circuitry by Using Internal Battery Voltage, Meter should Deflect Full Scale
