Description

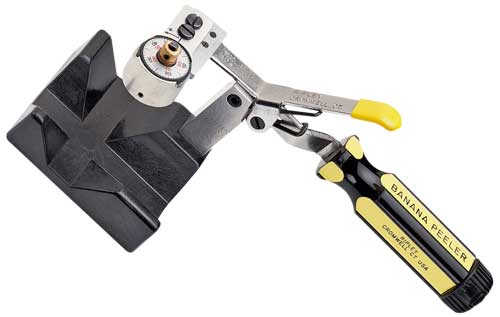

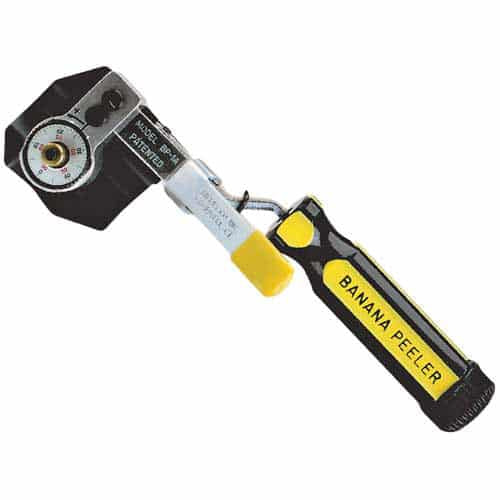

The Ripley BP A Banana Peeler Scoring Tool is engineered for precision scoring of semi-con insulation on smaller diameter underground primary distribution cables. Built to perform in high-voltage environments, it allows clean, controlled scoring without damaging the insulation beneath—supporting both spiral and longitudinal scoring techniques.
Features:
- Adjustable blade depth enables precise scoring of semi-con without harming underlying insulation
- Single-handed scoring around cable circumference and along length
- Spring-loaded blade assembly with Teflon-coated table guide ensures accurate, repeatable scoring depths
- Designed for use on underground primary distribution cables
- Supports both spiral and longitudinal scoring methods
- End-access design allows quick cable setup
- Rated for high-voltage applications up to 35 kV
- Effectively shaves semi-con insulation for clean removal
Specifications:
- Cable Diameter Compatibility: 0.38" to 0.75"
- Scoring Depth Range: 1–90 mils
- Min. Voltage: 5 kV
- Max. Voltage: 35 kV
- Length: 9.4" (239 mm)
- Weight: 13 oz (369 g)
- Replacement Blade Part #: 34230
- Made in the USA
Includes:
- 1 x Ripley BP A Banana Peeler Scoring Tool
