Description

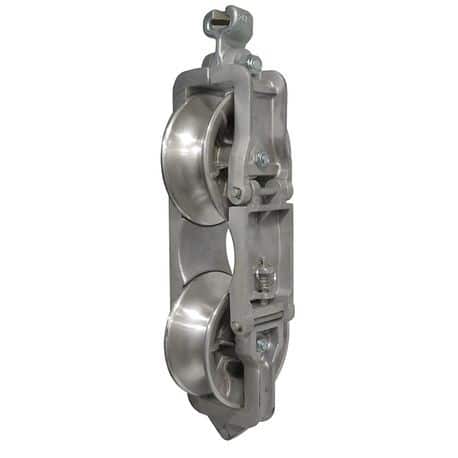

DNCB-77 Aluminum Uplift Block The DNCB-77 is a high-strength aluminum uplift block designed for specialty applications in line work and cable stringing operations. This professional-grade tool is specifically engineered to combat uplift conditions where cables or conductors tend to rise out of standard stringing blocks. Manufactured by DDIN, these uplift blocks provide reliable performance for linemen in demanding field conditions.
Features:
- . High-strength aluminum alloy frame construction provides excellent durability while maintaining a relatively lightweight design for easier handling and installation.
- . Side gate with spring plunger locking mechanism ensures secure cable retention during stringing operations while allowing for convenient loading and unloading.
- . Designed specifically for uplift conditions to hold down pulling lines or conductors, preventing them from rising out of the stringing block during tensioning operations.
- . 3-inch sheave width accommodates various cable sizes, providing versatility across different applications and project requirements.
- . 7-inch sheave diameter offers optimal bending radius for conductors, reducing stress and potential damage during the pulling process.
- . 2,500 lbs maximum load capacity delivers reliable performance for demanding industrial applications.
- . Available in urethane-lined version (DNCB-77LS) for enhanced cable protection and reduced friction during operations.
Specifications:
- Model: DNCB-77
- Frame Material: High-strength aluminum alloy
- Sheave Width: 3 inches
- Sheave Diameter: 7 inches
- Working Clearance: 2 inches
- Weight: 16.5 pounds
- Maximum Load Capacity: 2,500 pounds
- Gate Type: Side gate with spring plunger lock
