Description

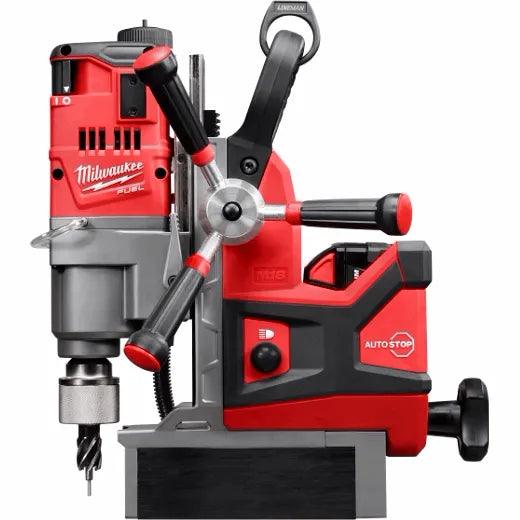

The Milwaukee 2788-22HD M18 FUEL 1-1/2" Lineman Magnetic Drill High Demand Kit is a high-performance cordless solution designed specifically for drilling into structural steel and heavy-duty metalwork. It delivers drilling power and speed that outperforms leading corded models, while its cordless design enhances mobility and safety for linemen and industrial professionals.
Features:
- POWERSTATE Brushless Motor: Delivers maximum power, faster drilling, and up to twice the motor life compared to traditional motors.
- Strongest Magnetic Hold: The self-powered magnet base uses permanent magnets for up to 2,000 lbs. of holding force on 1/4" steel, improving safety and stability without relying on battery power.
- Advanced Electronics: REDLINK PLUS Intelligence ensures optimal performance and overload protection by enabling communication between the tool, battery, and charger.
- Auto-Stop Lift-Off Detection: Automatically shuts down the motor if excessive rotational movement is detected, providing enhanced user safety during operation.
- High Output Batteries:
Specifications:
- Power Source: 18V Cordless, M18 Battery System
- Motor: POWERSTATE Brushless
- Magnetic Holding Force: Up to 2,000 lbs. on 1/4" steel
- Drilling Capacity: 1-1/2" annular cutter, 1/2" twist bit
- Speed: 2-speed gearbox (400/690 RPM)
- Stroke Length: 5-3/4"
- Maximum Motor Head Adjustment: 5-1/8"
- Tool Dimensions: Length 13-3/4", Width 7-1/2", Height 15-1/2"
- Weight: 29.5 lbs
- Tool Warranty: 5 years; Battery Warranty: 3 years
Includes:
- Versatile Drilling Capacity: Handles up to 1-1/2" annular cutters and 1/2" twist bits for a wide range of applications.
- Two-Speed Gearbox: Switch between 400 and 690 RPM to adapt to various drilling requirements.
- Permanent-Magnet Base: Magnet remains engaged even if the battery drains, reducing risk while working overhead or in remote locations.
- Technical Specifications:
- Power Source: 18V Cordless, M18 Battery System
- Motor: POWERSTATE Brushless
- Magnetic Holding Force: Up to 2,000 lbs. on 1/4" steel
- Drilling Capacity: 1-1/2" annular cutter, 1/2" twist bit
- Speed: 2-speed gearbox (400/690 RPM)
- Stroke Length: 5-3/4"
- Maximum Motor Head Adjustment: 5-1/8"
- Tool Dimensions: Length 13-3/4", Width 7-1/2", Height 15-1/2"
- Weight: 29.5 lbs
- Tool Warranty: 5 years; Battery Warranty: 3 years
- What's Included in the Package:
- Milwaukee M18 FUEL 1-1/2" Lineman Magnetic Drill (2788-20)
- (2) M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery Packs (48-11-1880)
- M18 & M12 Rapid Charger (48-59-1808)
- 150W DC Inverter
- 3/4" Weldon to 1/2" Chuck Adapter
- Chuck Key
- Magnetic Lubrication Tank
- Safety Strap
- (2) 1" Retractable Pilot Pins
- Carrying Case
