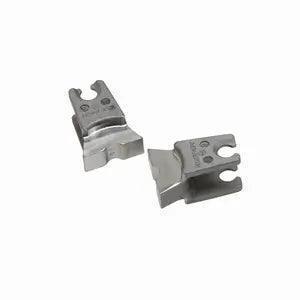

Burndy W247 Die — Reliable Stainless Steel Compression Die
By a member of the T and A Tools team
At T and A Tools, we stand behind tools and accessories that get the job done right the first time. The Burndy W247 Die is a premium stainless steel compression crimping die engineered for dependable electrical terminations and grounding work. Available now from our catalog for $83.99.
What this die is for
The W247 is a W-Die (Twin W-RT style) built for circumferential compression crimps. It's specifically suited for HYGROUND compression grounding connectors and is commonly used by linemen and electrical technicians for aluminum wire and grounding applications where a secure, long-lasting electrical connection is required.
Key Features
- Material: Durable stainless steel for long service life and corrosion resistance.
- Die Type: W Die (Twin W-RT style) for circumferential compression crimps.
- Crimp Force Capacity: Rated up to 6 ton capacity to ensure consistent crimps.
- Cable & Connector Compatibility: Designed for 2/0 – 3/0 AWG aluminum wire; compatible with T-Tap style connectors and conductor types such as AAAC, AAC, and ACSR.
- Tool Compatibility: Fits Burndy MD6, MD7 (mechanical), Y500CTHS (hydraulic), PAT600, and PATMD (battery-actuated) crimpers.
- Die Index: 247 — easy identification for field use.
- Compliance: RoHS compliant and Buy America(n) qualified.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Stainless steel |
| Die Type | W Die (Twin W-RT) |
| Crimp Force Capacity | 6 ton |
| Cable Range | 2/0 – 3/0 AWG (aluminum) |
| Compatible Connectors | HYGROUND compression grounding connectors, T-Tap style |
| Compatible Tools | Burndy MD6, MD7, Y500CTHS, PAT600, PATMD |
| Die Index | 247 |
| Dimensions (approx.) | Height: 1.36 in • Length: 1.01 in • Width: 0.75 in |
| Compliance | RoHS Compliant; Buy America(n) Qualified |
| Packaging | Typically sold individually; see distributor/spec listing for quantity options |
Why choose the W247 Die?
The Burndy W247 provides a consistent circumferential compression crimp designed to meet the demands of utility and industrial electrical work. Its stainless steel construction helps resist wear and environmental effects in field conditions, while compatibility with multiple Burndy crimping platforms (mechanical, hydraulic, and battery-actuated) makes it a versatile pick for crews that use mixed tool fleets.
The die also integrates with Burndy’s color-coded connection system to simplify die selection and reduce on-site confusion — a small convenience that pays off when speed and accuracy matter.
Order & Availability
You can purchase the Burndy W247 Die directly from our online store:
If you need bulk quantities, special shipping, or have questions about tool compatibility, contact our sales team and we’ll assist with specs, lead times, and recommendations.
